Sensepeek PCBITE-4017 – Insulation cover large (A4)

Insulation for the PCBite L base plate. Add it to an earlier base plate without a cover or replace a worn one, for safe work on powered PCBs and less glare under the microscope.

The large insulation cover fits the PCBite L base plate, 297 × 210 mm (11.69 × 8.27 in, A4). Use it to add insulation to an earlier PCBite base plate without a pre-fitted cover, or to replace a worn cover on a current one.

The non-conductive polycarbonate keeps powered PCBs from shorting against the metal surface, with no tape or improvised insulation needed. Its anti-reflective finish reduces glare from microscope lighting, which makes small PCBs and fine-pitch components easier to see under magnification.

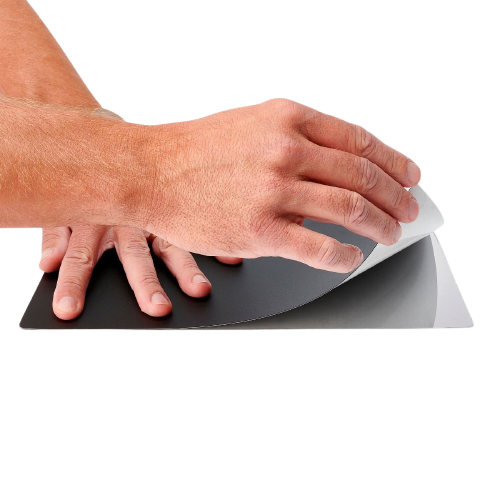

The cover is 1 mm (0.04 in) thick and attaches with a strong adhesive. Peel off the backing and place it on the base plate. Installation instructions are included.

All current PCBite base plates in sizes XS, S, L and XL come with a pre-fitted insulation cover. The base plate is sold separately.

Included

• 1x Insulation cover large (A4)

Specifications

• Size: 297 × 210 mm (A4), 1 mm thick
• Material: non-conductive polycarbonate, matte black
• Mounting: peel-and-stick adhesive
• Package: 35 g
