Sensepeek PCBITE-6029 – PCBite kit with 2x SQ500 500 MHz and 4x SQ10 handsfree probes

The largest PCBite kit with an insulated base plate, holders, two SQ500 oscilloscope probes and four SQ10 handsfree probes. The base plate gives you room for large PCBs, several connected boards or a complete handsfree probing setup. Use the SQ500 probes with your oscilloscope and the SQ10 probes with your logic analyzer, multimeter or debug adapter, while keeping both hands free to make measurements and adjust your instruments.

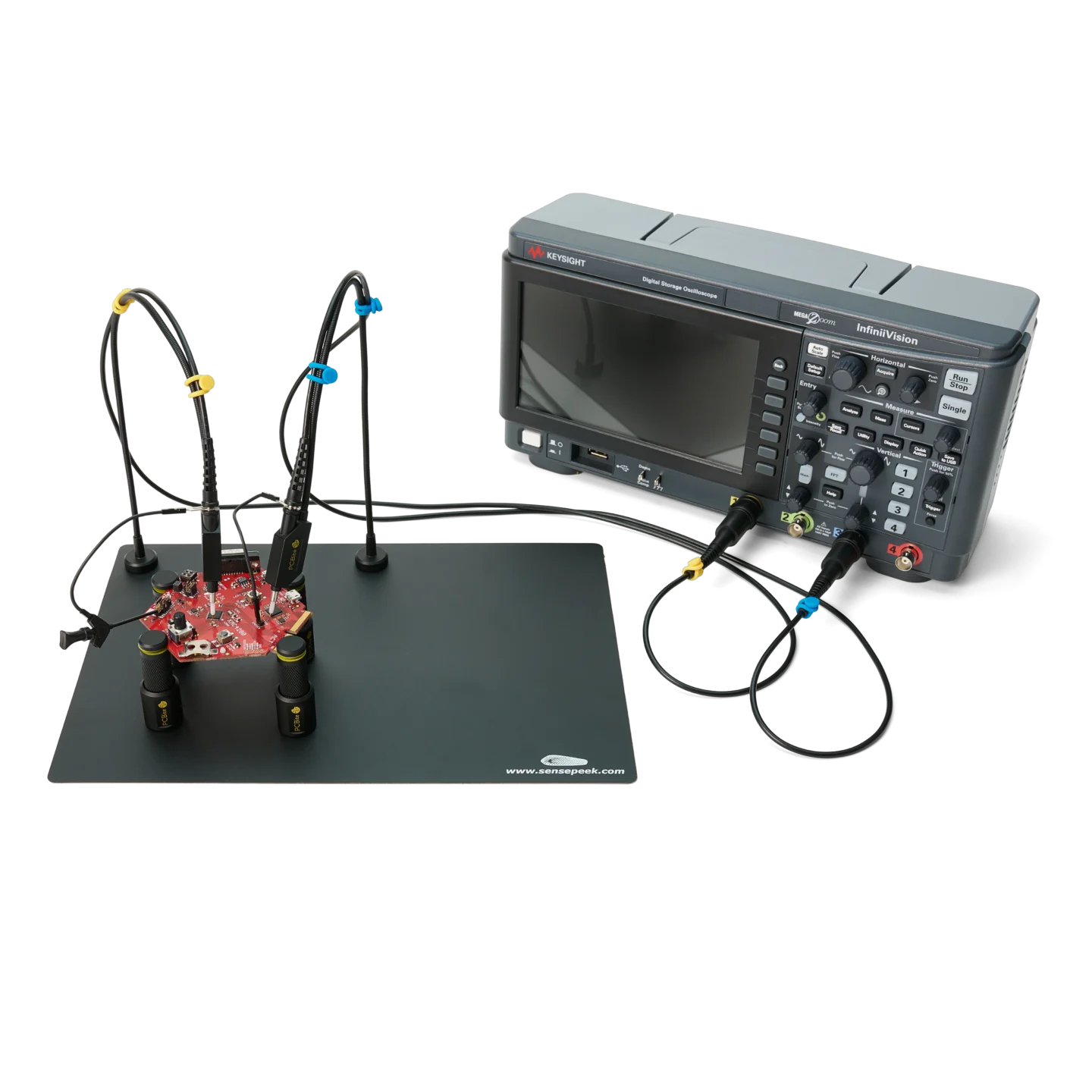

Place the spring-loaded test needle on the signal, set the spring-loaded ground needle next to it and release. The flexible arm holds the probe in position, while the N52 neodymium magnet in the base keeps it locked to the base plate. The two SQ500 500 MHz passive 10:1 probes stay in place for quick measurements and long triggering sessions, with a probe ID pin that lets compatible oscilloscopes automatically select the correct 10:1 scaling. With 9 pF at the tip, they keep loading small on high-speed clocks and fast edges. No soldered wires and no fixtures.

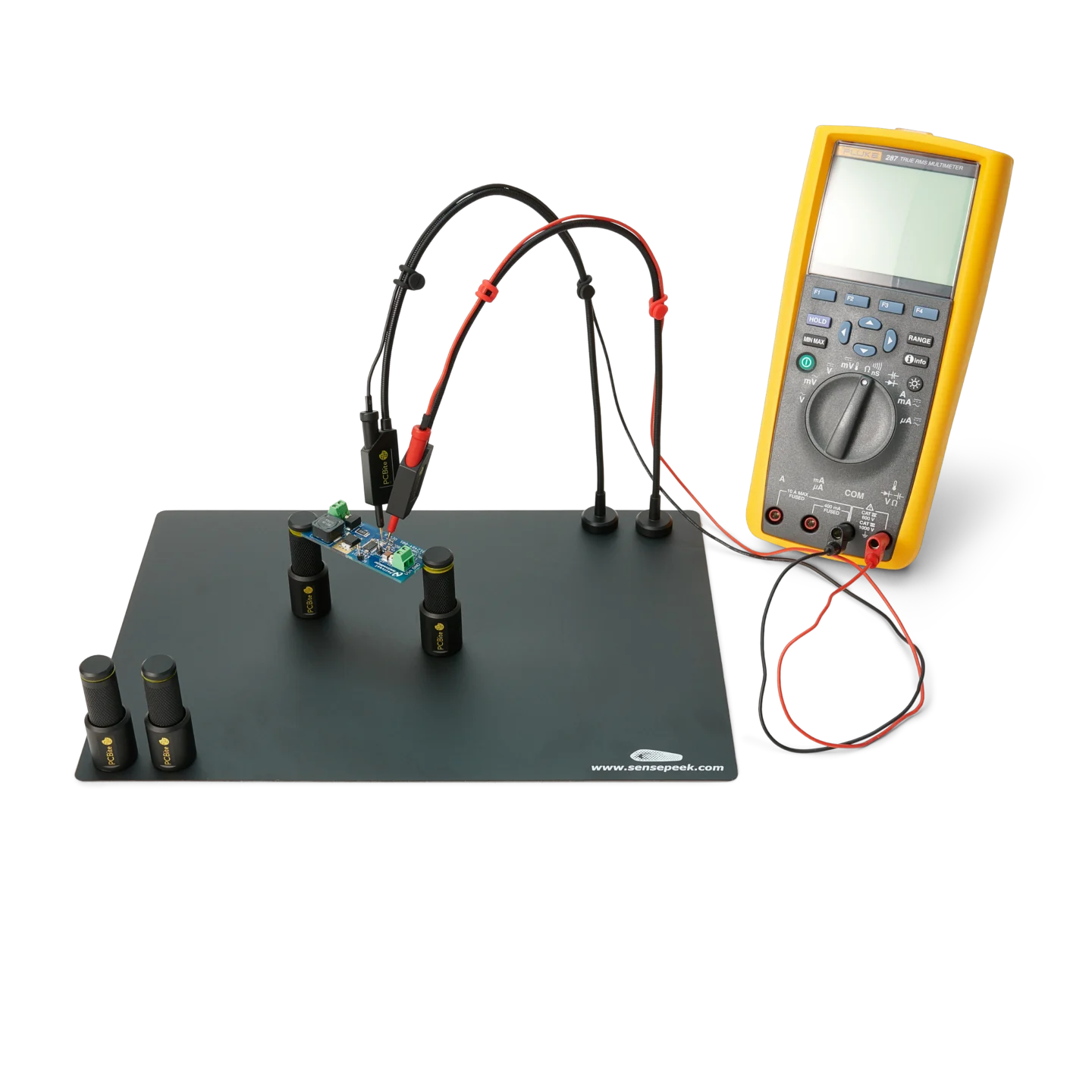

The four SQ10 probes are designed for DC to 10 MHz measurements and well suited for I2C, I3C, UART, CAN bus and other digital signals. Color coded test wires with 2.54 mm (0.100 in) jumper connectors, often called Dupont connectors, connect directly to logic analyzers, multimeters, mixed signal oscilloscopes and debug adapters. Red and black test leads with 4 mm banana plugs connect directly to multimeters and bench power supplies.

All six probes are insulated and can be used handheld like a traditional probe. A low center of gravity keeps them stable when used handsfree, and color coded cable holders in four standard channel colors make each channel easy to trace.

Two ground options are included with each SQ500, the ground spring needle for handsfree measurements and the ground spring for handheld use, both at the full rated bandwidth. A test hook, an alligator clip and ground leads with Dupont connectors cover connections where no nearby ground pad is available.

Every PCBite holder uses the same magnetic base, knurled grip and pressure spring, with a standard working height of 50 mm (1.97 in). Each holder includes insulation washers for holding powered PCBs.

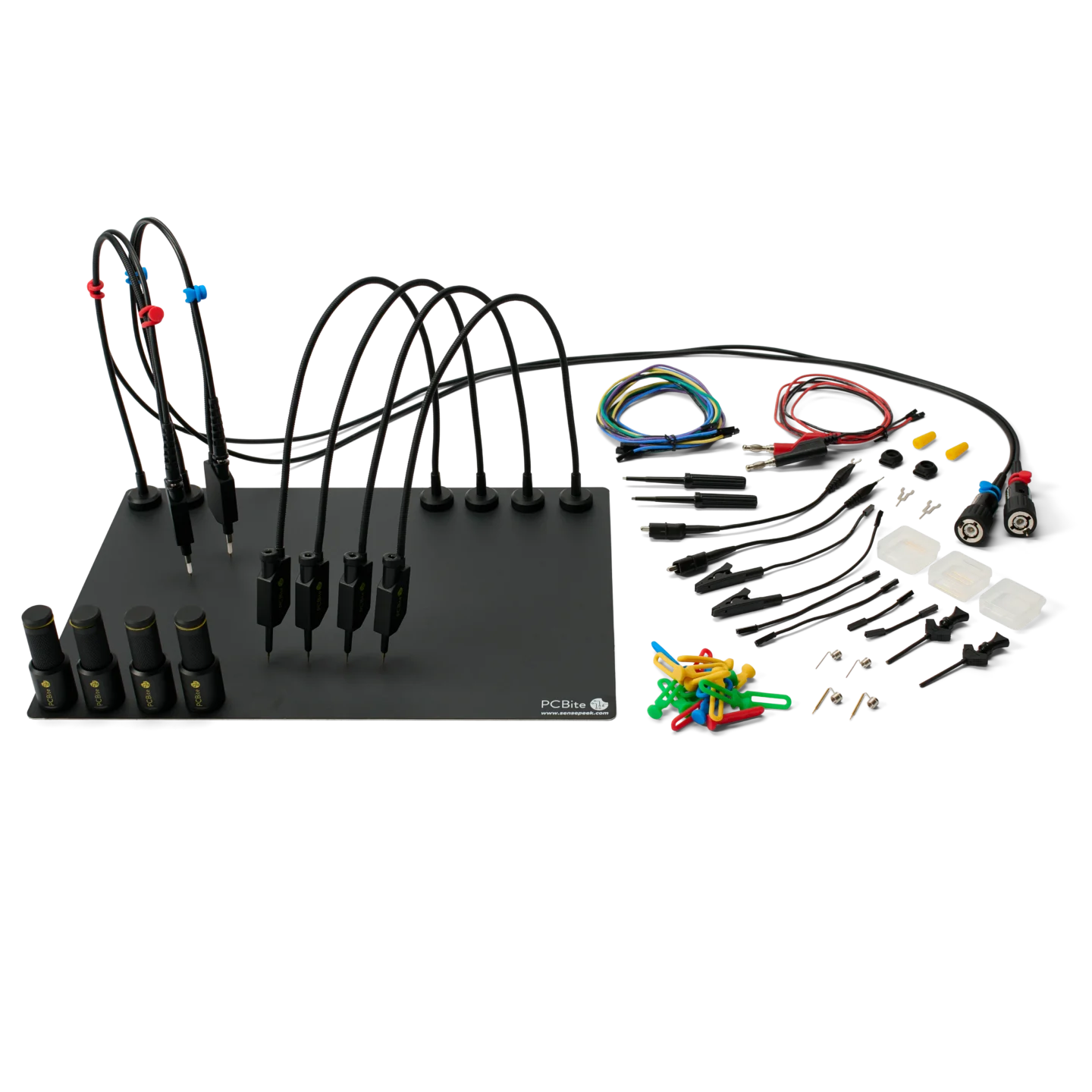

Included

• 1x Insulated base plate, large
• 4x PCB holder
• 4x SQ10 probe with spring tipped test needle (black)
• 2x SQ500 500 MHz probe with spring tipped test needle
• 6x SQ probe holder for handsfree measurement
• 2x Banana to Dupont test lead (red, black)
• 5x Dupont test lead 80 cm (31 in), 5 colors
• 2x Dupont ground lead 10 cm (4 in)
• 2x Dupont ground lead 5 cm (2 in)
• 2x Test hook with Dupont connector
• 2x Alligator to 5 mm clip ground lead CAT II
• 2x Alligator to Dupont ground lead
• 2x Ground clip 5 mm to Dupont
• 2x Ground spring, for handheld measurements at rated bandwidth
• 2x Ground spring needle, for total handsfree measurements at rated bandwidth
• 6x Extra test needle (SP/SQ)
• 2x Adjustment tool (for probe compensation)
• 3x Set of cable holders (red, yellow, green, blue)
• 1x Micro fiber cloth (to polish the mirror side of base plate)
• 1x Set of insulation washers
• 2x Finger protection CAT II
• 2x Probe tip protection cap

Specifications

• SQ500 probe bandwidth: 500 MHz
• SQ500 input capacitance: 9 pF at the tip
• Attenuation: passive 10:1
• Connector: BNC with readout pin for automatic 10:1 scaling
• SQ10 probes: DC to 10 MHz
• Test lead length: 80 cm (31 in)
• Package: 310 × 215 × 50 mm, 1300 g
