Sensepeek PCBITE-7028 – PCBite kit with 4x SP10 probes and test wires

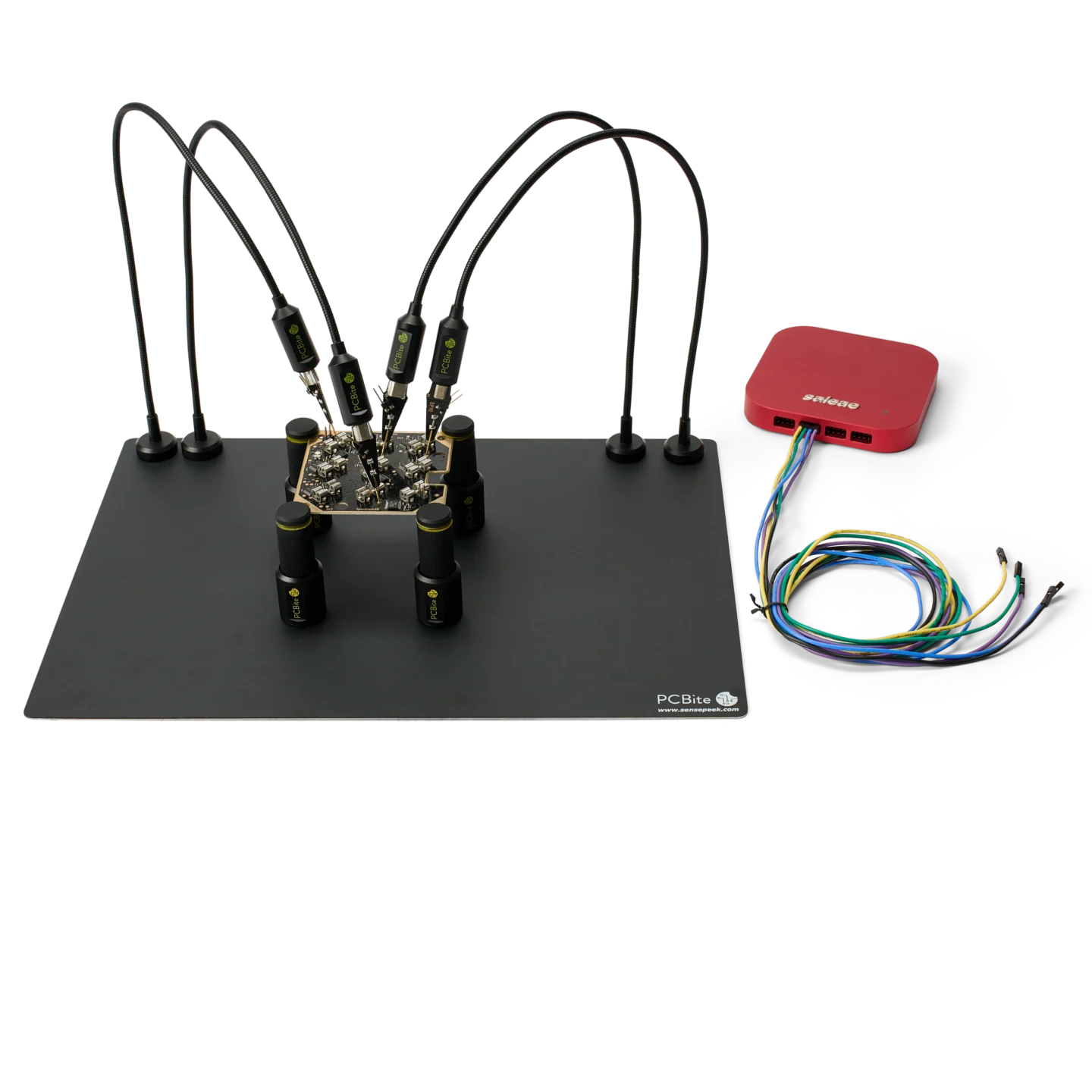

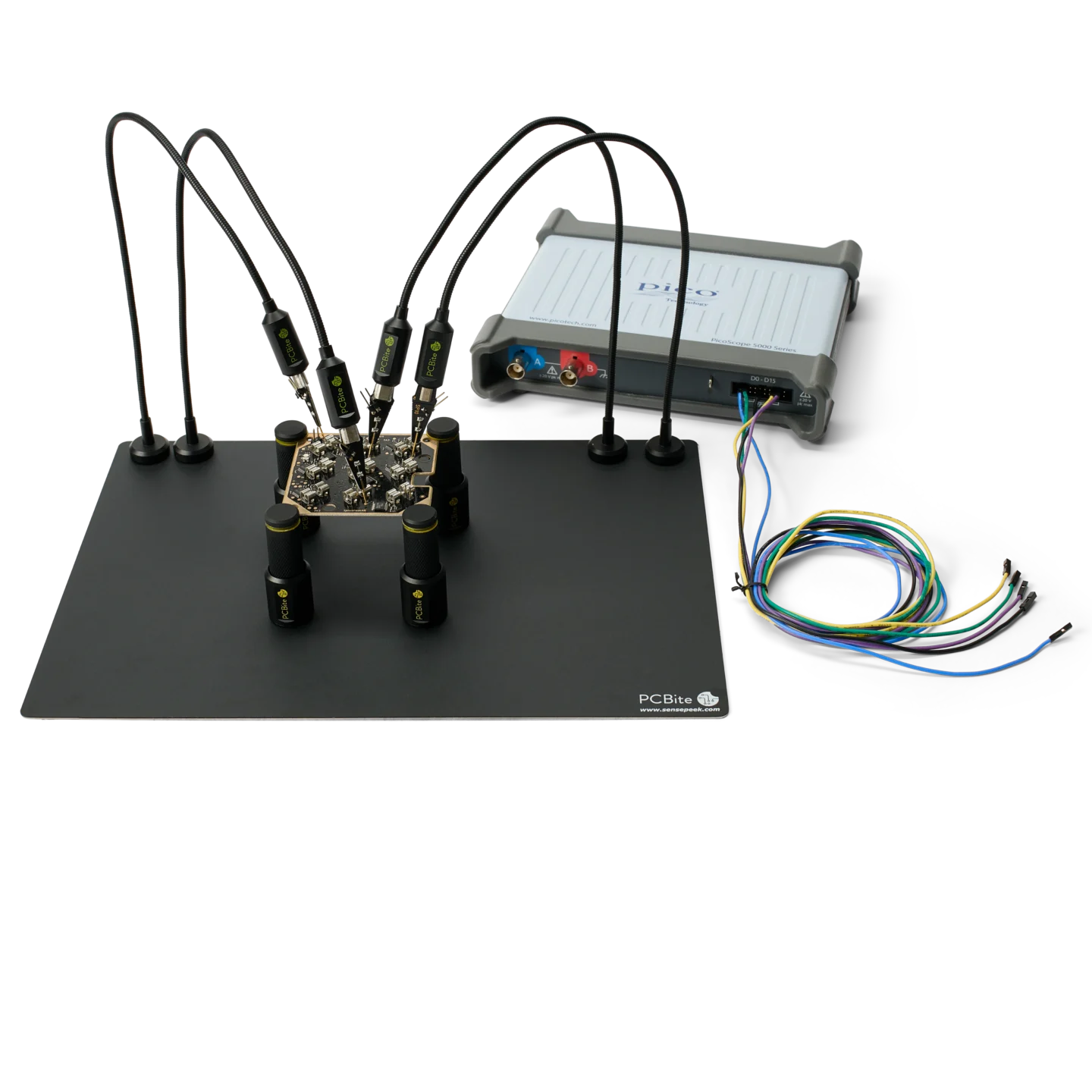

The largest PCBite kit with an insulated base plate, holders and four handsfree SP10 probes. The base plate gives you room for large PCBs, several connected boards or a complete handsfree probing setup. Position each probe on the signals you need and monitor them with your logic analyzer, multimeter or debug adapter while keeping both hands free.

Place the spring-loaded needle on any test point in the signal path and release. The flexible arm holds the needle in position, while the N52 neodymium magnet in the base keeps the probe locked to the base plate. No soldered wires and no fixtures.

The 2.54 mm (0.100 in) dual pin header accepts two cables at the same time, enabling simultaneous power and measurement or signal pass through to another probe.

Color coded test wires with 2.54 mm (0.100 in) jumper connectors are included. They connect directly to logic analyzers, multimeters, mixed signal oscilloscopes and debug adapters. Red and black test leads with 4 mm banana plugs connect directly to multimeters, bench power supplies and other instruments with standard 4 mm inputs.

Designed for DC to 10 MHz measurements and well suited for I2C, I3C, UART, CAN bus and other digital signals.

Replaces PCBITE-4003 and adds a pre-fitted insulation cover to the base plate.

Included

• 1x Insulated base plate, large
• 4x PCB holder
• 4x SP10 probe with spring tipped test needle (black)
• 4x SP probe holder for handsfree measurement
• 2x Banana to Dupont test lead (red, black)
• 5x Dupont test lead 80 cm (31 in), 5 colors
• 4x Extra test needle (SP/SQ)
• 1x Micro fiber cloth (to polish the mirror side of base plate)
• 1x Set of insulation washers

Specifications

• Measurement range: DC to 10 MHz
• Current: up to 2 A continuous
• Needle resistance: below 0.02
• Test lead length: 80 cm (31 in)
• Package: 310 × 215 × 27 mm, 940 g
