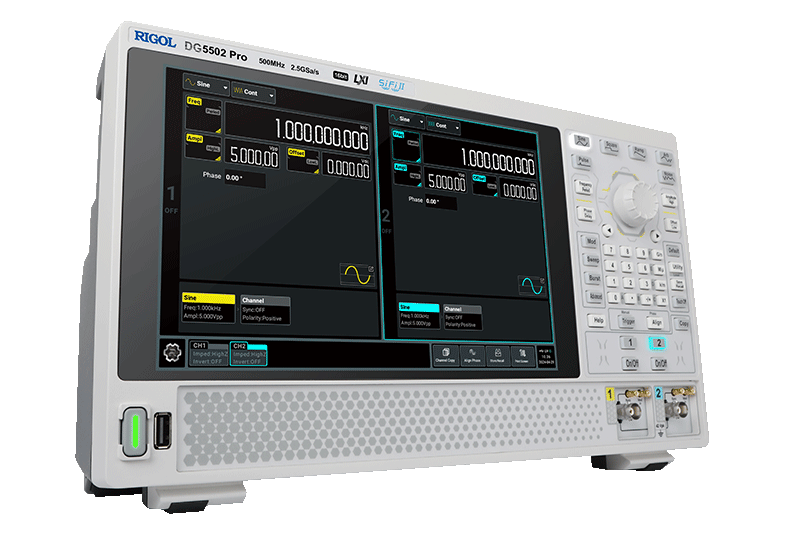

DG5252 PRO

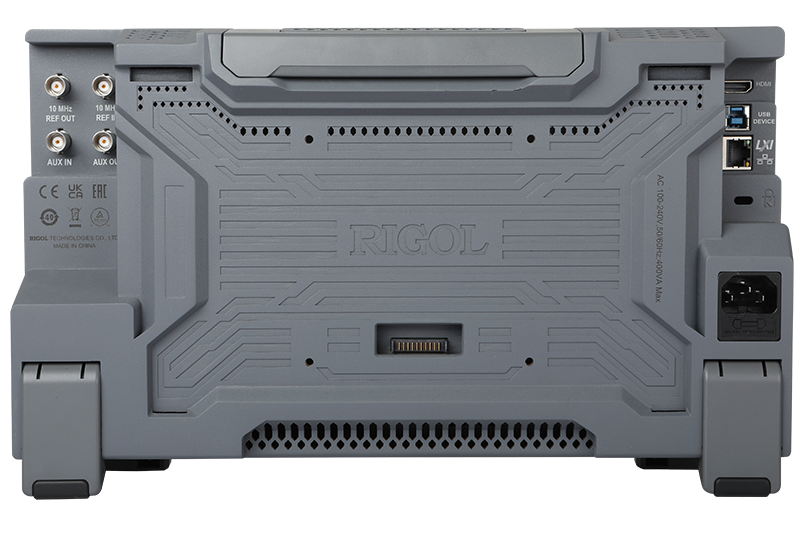

DG5252 PRO - Image 2

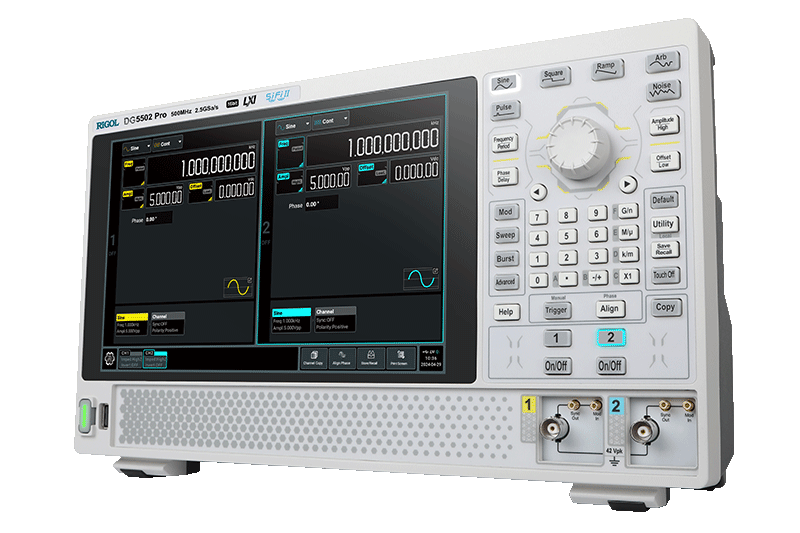

DG5252 PRO - Image 3
DG5252 PRO - Image 4

DG5252 PRO

CHF 1'511.00
excl. VAT

Rigol
Arbitrary, 250 MHz, 250 MHz, Arb/Function, 2-CH, 16-bit, HDMI, 2.5 GSa/s, 128 Mpts optional, 10.1-inch touch screen, AM
Wishlist
SKU: 7020286 Category: Brand:

Description

RIGOL DG5252 PRO 250 MHz 2-Channel Function/Arbitrary Waveform Generator

The RIGOL DG5252 PRO is a 250 MHz, 2-channel function/arbitrary waveform generator from the DG5000 Pro series with 2.5 G Sa/s sample rate and 16-bit vertical resolution.

Key Specifications

  • Max. frequency: 250 MHz sine
  • Channels: 2
  • Sample rate: 2.5 GSa/s
  • Vertical resolution: 16 bits
  • Arbitrary memory: 64 Mpts/CH standard, 128 Mpts/CH optional (DG5000 Pro-2RL)
  • Jitter: 200 ps typ.
  • Display: 10.1-inch touch screen, 1280 × 800

Waveforms & Modulation

  • Waveforms: sine, square, ramp, pulse, noise, DC, arbitrary, harmonic (up to 20th order), PRBS
  • Modulation: AM, FM, PM, SUM, ASK, FSK, PSK, PWM
  • Sweep (linear, log, step), burst (N-cycle, gated)
  • Options: sequence (DG5000 Pro-SEQ), IQ modulation (BPSK … 256QAM), multi-pulse, multi-tone, pattern

Connectivity

  • LAN (1 GbE, LXI-C), Web Control, HDMI, USB 3.0 Host, USB 3.0 Device (TMC)

Additional information

Functions

, , , , , , , , , ,

Bandwidth (MHz)

Frequency Range

250 MHz
Waveform

Channels

2-CH
Vertical Res

Interface

, , ,

Sample Rate:

Memory:

,

Display

Modulation

AM, ASK, FM, FSK, PM, PSK, PWM, SUM
