DSOX1202G

CHF 1'193.00
excl. VAT

Keysight
2 CH, 70 MHz, 2000 MS/s, 8-bit, 2 Mpts, Built-in
Wishlist
SKU: 7005783 Category: Brand:

Description

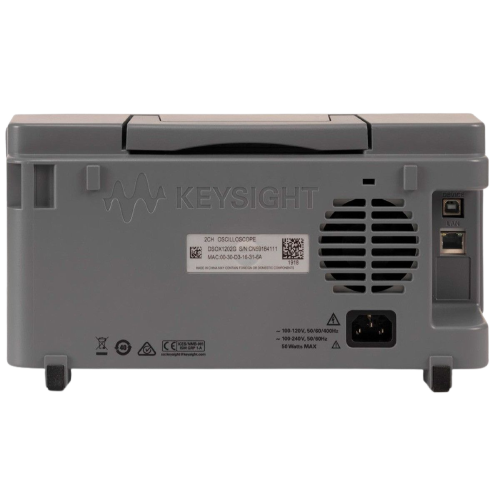

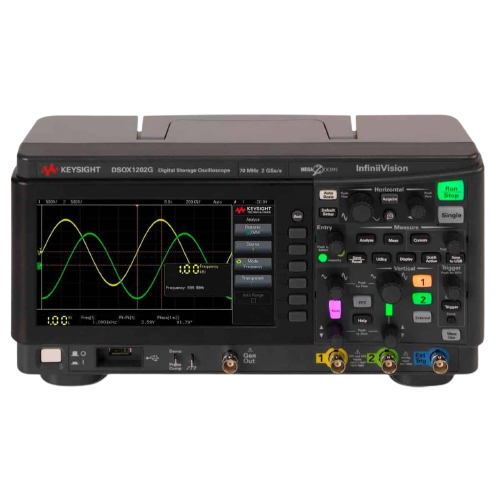

Keysight DSOX1202G 70 MHz 2-Channel Digital Storage Oscilloscope

The Keysight DSOX1202G is a 70 MHz, 2-channel digital storage oscilloscope from the InfiniiVision 1000 X series, sampling at up to 2 GSa/s.

Key Specifications

  • Bandwidth: 70 MHz standard, upgradable to 100 MHz or 200 MHz by license
  • Analog channels: 2 + EXT trigger
  • Sample rate: 2 GSa/s max
  • Memory depth: 2 Mpts
  • Vertical resolution: 8 bits
  • Waveform update rate: 200,000 wfms/s
  • Display: 7-inch WVGA

Analysis & Triggering

  • Built-in 20 MHz function generator (WaveGen) and frequency response analysis (Bode plots)
  • Serial protocol trigger & decode: I2C, SPI, UART/RS232, CAN, LIN (standard)
  • FFT, math, mask testing, automatic measurements, built-in DVM and frequency counter

Connectivity & Options

  • USB host & device, LAN; free BenchVue / PathWave software support

Standard Accessories

  • 2x N2140A 200 MHz 10:1/1:1 switchable passive probes

Additional information

Anlalog Channels

2 CH
Bandwidth (MHz)

Sampling Rate

2000
Vertical Resolution

Memory Depth (Mpts)

Protocol Decode

, , , , ,

FFT Function

Touchscreen

Trigger Types

, , , , ,

AWG
