Keysight HD302MSO 200 MHz 2-Channel 14-bit Mixed-Signal Oscilloscope

The Keysight HD302MSO is a 200 MHz, 2-channel 14-bit mixed-signal oscilloscope from the InfiniiVision HD3 series with 16 digital channels, sampling at up to 3.2 GSa/s.

Key Specifications

  • Bandwidth: 200 MHz base, upgradable to 350 MHz, 500 MHz or 1 GHz (HD3BW licenses)
  • Analog channels: 2
  • Digital channels: 16 (N2756A logic probe required)
  • Sample rate: 3.2 GSa/s on all channels
  • Vertical resolution: 14-bit ADC (16 bits with bandwidth limit)
  • Memory depth: 20 Mpts/channel standard, 50 or 100 Mpts/channel optional
  • Waveform update rate: > 1,300,000 wfms/s
  • Display: 10.1-inch capacitive touch, 1280 × 800

Analysis & Triggering

  • Trigger types: Edge, Edge-then-Edge, OR, Pattern, Pulse Width, Rise/Fall Time, Runt, Setup/Hold, Window, Zone; serial triggers with options
  • Serial trigger & decode options: HD300EMBA (I2C, SPI, UART), HD300AUTB (CAN/CAN FD/CAN XL, LIN, SENT), HD300USBA (USB 2.0/PD), HD300ETHA (Ethernet), HD300AERA (MIL-STD-1553, ARINC 429)
  • Standard: FFT, Fault Hunter, frequency response analysis, mask testing, histograms, segmented memory, 4 DVMs and counters

Connectivity & Options

  • USB 3.0 host (2x), USB 2.0 device, Gigabit LAN, Aux out, EXT trigger
  • Options: 100 MHz WaveGen (HD3WAVEGEN), power analysis, jitter analysis

Standard Accessories

  • 2x N2843A 500 MHz 10:1 passive probes

Additional information

Anlalog Channels

2 CH
Bandwidth (MHz)

Digital Channels

16
Sampling Rate

3200
Vertical Resolution

Memory Depth (Mpts)

, ,

Protocol Decode

FFT Function

,

Touchscreen

,

Trigger Types

, , , , , , , , ,

Additional

Bandwidth upgradable to 350 MHz / 500 MHz / 1 GHz, MSO (16 digital channels)

Available Technical Documents

Optional Add-ons

  • Keysight PP0001A

    CHF 1'074.00
    excl. VAT
    Hi-Z+ Passive Probe, 1000 MHz, 400 ps, 1.3 m, BNC, PP0004A
    View product

  • Keysight PP0002A

    CHF 1'208.00
    excl. VAT
    Hi-Z+ Passive Probe, 800 MHz, 500 ps, 1.3 m, BNC, PP0004A, High-Voltage
    View product

  • Keysight N2795A

    CHF 1'698.00
    excl. VAT
    Single-Ended Active Probe, 1000 MHz, 1 MΩ, 1 pF, AutoProbe, From Oscilloscope W, ± 8 V, ± 8 V, High-Speed Single-Ended Signals, Fine-Pitch Tips, Low-Capacitance Active Probing
    View product

  • Keysight N7020A

    CHF 4'743.00
    excl. VAT
    Power Rail Probe, 2000 MHz, 1.1:1, 50 kΩ, ±850 mV, ± 24 V, AutoProbe, Low, Power Integrity, Ripple, High-Bandwidth Power-Rail Analysis
    View product

  • Keysight N7026A

    CHF 7'374.00
    excl. VAT
    150 MHz, <250 µArms, 40 A Non-Continuous, AutoProbe, Probe Button
    View product

  • Keysight N2820A

    CHF 6'695.00
    excl. VAT
    3 MHz, High, Supported, AutoProbe, Low-Current Power Analysis, AC and DC
    View product

Related Products

  • GDS-3102A

    CHF 4'318.00
    excl. VAT
    2 CH, 1000 MHz, 5000 MS/s, 8-bit, 200 Mpts, Built-in

    16 (optional), 1 GHz, 5000 MS/s, 8-bit, 200 Mpts, CAN, I2C, LIN, SPI, UART, Yes, Yes, Edge, Logic, Pulse Width, Runt, Setup/Hold, Timeout, Video

    View product
    Wishlist

  • PicoScope 3415E MSO

    CHF 2'064.00
    excl. VAT
    4 CH, 16 Digital CH, Mixed Signal, 5 GSa/s, 10-bit, USB 3.0 (USB-C), Built-in

    16 Digital Channels, Mixed Signal, 150 MHz, 4 + 16 (Dig), 1 GSa/s, 8-bit, 512 Mpts, USB 3.0, Built-in

    View product
    Wishlist

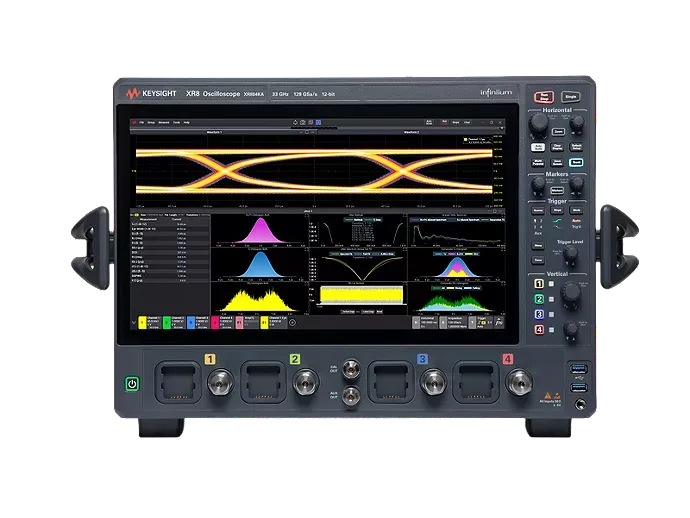

  • XR8
