MSO8204A

Name: MSO8204A
Brand: Rigol
SKU: SH3848
Availability: InStock

CHF 10'441.00
excl. VAT

4 CH, 2000 MHz, 16 Digital CH, 10000 MS/s, 8-bit, 125 Mpts full-channel, 10.1-inch capacitive multi-touch

SKU: SH3848 Category: Oscilloscopes Brand: Rigol

Description

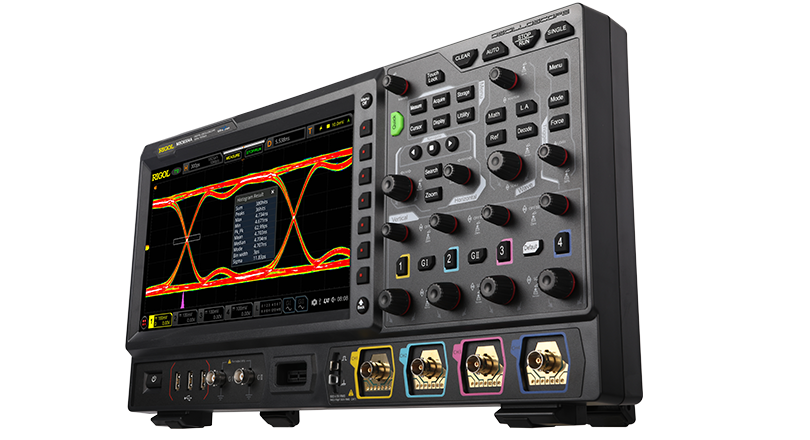

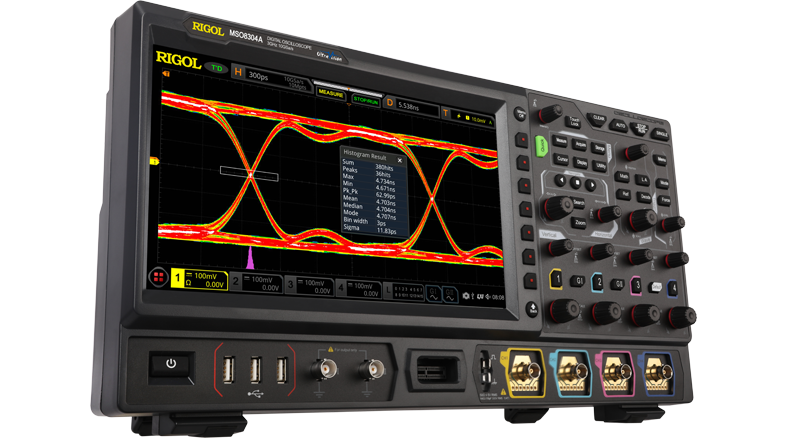

The Rigol MSO8204A is a 2 GHz, 4-channel mixed-signal oscilloscope from the MSO8000A series with 16 digital channels, sampling at up to 10 GSa/s.

Bandwidth: 2 GHz at 50 , 500 MHz at 1 M (rise time 206 ps)
Analog channels: 4 + EXT trigger
Digital channels: 16 (requires RPL2316 logic probe)
Sample rate: 10 GSa/s (single channel), 5 GSa/s (half channels), 2.5 GSa/s (all channels)
Memory depth: 500 Mpts (single), 250 Mpts (half), 125 Mpts (all channels); digital 62.5 Mpts
Vertical resolution: 8 bits
Waveform capture rate: 600,000 wfms/s, hardware recording 450,000 frames
Display: 10.1-inch capacitive multi-touch, 1024 × 600

Standard protocol decode: Parallel; serial protocol decode and trigger available as options
Real-time eye diagram and jitter analysis (MSO8000-JITTER option)
Enhanced FFT, automatic measurements, math, search & navigation, pass/fail

Anlalog Channels	4 CH
Bandwidth (MHz)	2000
Digital Channels	16
Sampling Rate	10000
Vertical Resolution	8-bit, up to 12-bit high-resolution mode
Memory Depth (Mpts)	125 Mpts full-channel, 250 Mpts dual-channel, 500 Mpts max
Protocol Decode	Yes, Parallel
FFT Function	Yes, FFT up to 1 Mpts
Touchscreen	10.1-inch capacitive multi-touch, Yes
Trigger Types	Delay, Duration, Edge, Nth Edge, Pattern, Pulse, Runt, Setup/Hold, Slope, Timeout, Video, Window, Zone
