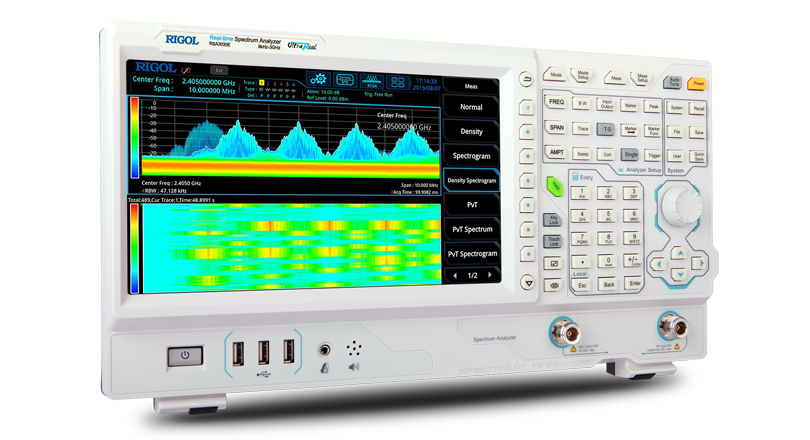

RIGOL RSA3045N 4.5 GHz Real-Time Spectrum Analyzer with Tracking Generator & VNA

The RIGOL RSA3045N is a RSA3000N series real-time spectrum analyzer covering 9 kHz to 4.5 GHz, with a built-in tracking generator and VNA mode (S11, S21, distance-to-fault) as standard.

Key Specifications

• Frequency range: 9 kHz to 4.5 GHz
• DANL: < -141 dBm typ. (preamp off), < -161 dBm typ. (with RSA3000-PA preamp)
• Phase noise: < -102 dBc/Hz typ. @ 10 kHz offset
• RBW: 1 Hz to 3 MHz (10 MHz with RSA3000-BW1)

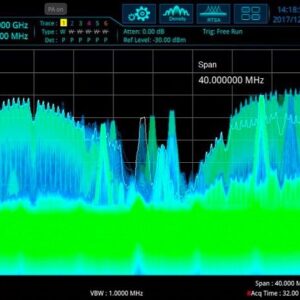

• Real-time bandwidth: 10 MHz standard, 25 MHz / 40 MHz optional
• Min. sweep time: 1 ms (span 10 Hz), 1 µs zero span
• Tracking generator: 100 kHz to 4.5 GHz, -40 to 0 dBm
• Display: 10.1-inch capacitive multi-touch, 1024 × 600

Measurement Modes

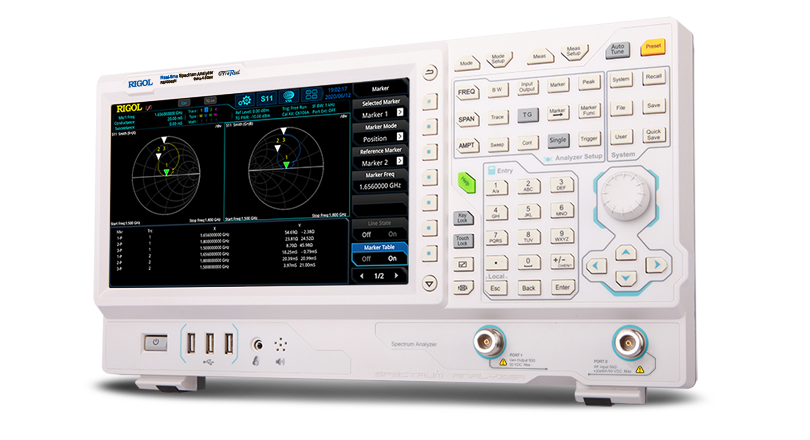

• VNA mode (standard): S11, S21, distance-to-fault, 10 MHz to 4.5 GHz, 101 to 10,001 points

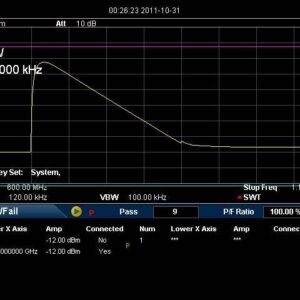

• GPSA and RTSA standard; EMI (RSA3000-EMI) optional
• Calibration kits CK106A / CK106E optional

Connectivity

• USB 2.0 Host (4x), USB Device, LAN (LXI Core 2011), HDMI 1.4b, 10 MHz Ref, Ext Trigger, IF out
