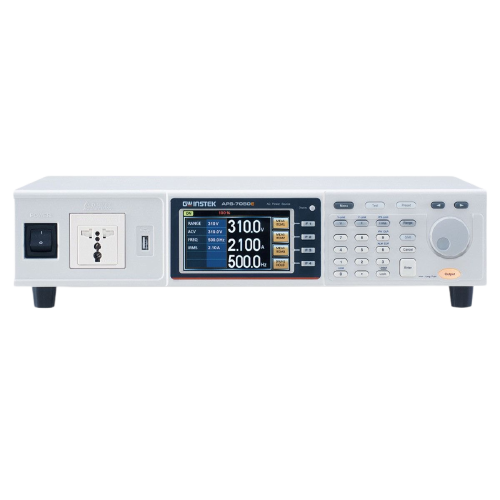

APS-7050E

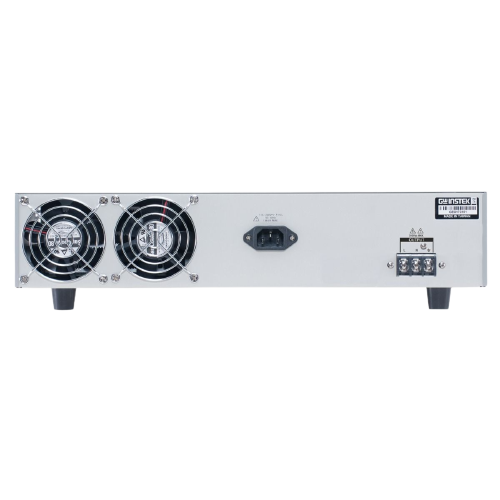

APS-7050E - Image 2

APS-7050E

CHF 1'568.00
excl. VAT

GW Instek
AC Source, 500 VA, 0-310 V, 45-500 Hz, USB, LCD, Full
Wishlist
SKU: 7008939 Category: Brand:

Description

GW INSTEK – APS-7050E

– 500VA Linear AC Power Source 500VA, 310Vrms, 4.2/2.1Arms
GW Instek launches the APS-7000E Series the economy version of the APS-7000 Series programmable AC power source. With the height of 2U, the maximum rated output for APS-7050E is 500VA, 310Vrms, 4.2Arms and APS-7100E is 1000VA, 310Vrms, 8.4Arms. The output frequency range of the series is 45~500Hz. The series is ideal for the test and development of DC power supply devices, consumer electronics, automotive electronics and electronic components.
The APS-7000E Series comprises six measurement and test functions (Vrms, Irms, F, Ipk, W, PF), and provides user interface similar to that of AC Power Meter. The APS7000E Series, via switching many sets of current levels to increase small current measurement resolution, is ideal for the LED industry and standby mode power consumption test. Ten sets of Preset allow users to store ten settings.
To meet the test criteria of line voltage fluctuation often seen in consumer electronics, the APS-7000E Series not only provides a stable AC power source but also features the Test mode to satisfy special or abnormal voltage and frequency variation demands.
Ten sets of the Test mode simulate power outage, voltage rise, and voltage fall. The APS7000E Series that simulates waveforms of city power grid s transient changes is suitable for verifying electronics products operated under abnormal power source.
The APS-7000E Series is the economy version of the APS-7000 Series. If communications interface and larger voltage/frequency are required, please refer to the APS-7000 Series.
Key features:
– 4.3 large LCD Display
– Output Capacity:
 – APS-7050E(500VA, 310Vrms, 4.2/2.1Arms)
 – APS-7100E(1000VA, 310Vrms, 8.4/4.2Arms)
– Measurement Function: Voltage, Current, Power, Frequency, Power Factor, Ipeak
– Reverse Current Alarm Function
– 10 Sets of The Test Mode Simulate Power Transient Output
– 10 Sets of Preset Allow Users to Store Ten Settings
– OCP/OPP/OTP Protection
– Variable Voltage, Frequency and Current Limiter
– Universal Power Inlet

Why Choose the APS-7050E?

This device is engineered to meet the highest standards of accuracy and reliability in demanding environments. Whether for research and development, quality control, or production testing, it provides the consistent performance professionals depend on. For technical consultations and further details, please contact our expert team today.

Additional information

Equipment Type

Power Supply
Power Unit

Power Type

Power

Voltage:

Freq

Interface

Display

Protection

Additional

Economy

Available Technical Documents
