Description

2-channel arbitrary waveform generator with up to 500 MHz bandwidth (HBW mode), 2.5 GSa/s sampling rate, 16-bit resolution, up to 256 Mpts memory, and advanced modulation capabilities.

Product Description ” RIGOL DG6052

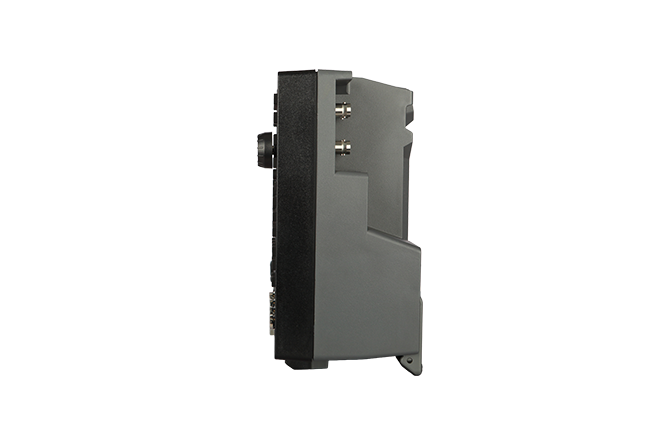

The Rigol DG6052 is a high-performance 2-channel arbitrary waveform generator from the DG6000 Series, designed for precise signal generation, simulation, and testing in advanced engineering and research environments.

Featuring a maximum bandwidth of up to 500 MHz in High Bandwidth (HBW) mode, the DG6052 delivers exceptional signal fidelity and flexibility. Combined with a real-time sampling rate of up to 2.5 GSa/s, it ensures accurate waveform reproduction and stable output performance across a wide frequency range.

Powered by advanced DDS (Direct Digital Synthesis) technology, the generator provides low distortion, fine frequency resolution, and reliable signal integrity. It supports a wide range of standard waveforms including sine, square, ramp, pulse, noise, and DC, as well as fully customizable arbitrary waveforms.

With 16-bit vertical resolution and up to 256 Mpts waveform memory (512 Mpts optional), the DG6052 enables precise generation of complex signal patterns with high detail and accuracy.

Comprehensive modulation capabilities include:

• AM, FM, PM
• FSK, ASK, PSK
• PWM and sweep modulation

Additional advanced features:

• Burst modes (N-cycle, gated, infinite)
• Frequency sweep (linear and logarithmic)
• Harmonic generation
• Waveform sequencing and editing

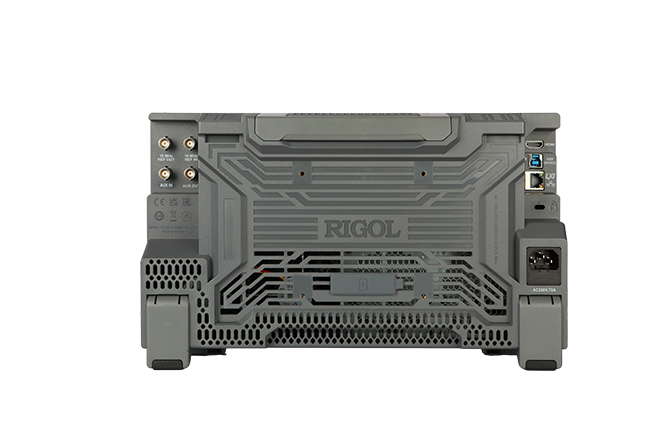

Multiple interfaces such as USB and LAN allow seamless integration into automated test systems, while the intuitive user interface and high-resolution display ensure efficient operation.

Key Specifications

• Max Bandwidth (HBW mode): 500 MHz
• Max Square Wave Frequency: 300 MHz
• Sampling Rate: up to 2.5 GSa/s
• Vertical Resolution: 16-bit
• Channels: 2
• Arbitrary Waveform Memory: 256 Mpts (512 Mpts optional)
• Advanced DDS technology
• Multiple modulation types (AM, FM, PM, FSK, ASK, PSK, PWM)
• Sweep and burst functionality
• USB & LAN connectivity

Why Choose the DG6054?

The DG6054 is built to deliver unmatched reliability and accuracy in the most demanding environments. Designed for engineers who prioritize performance, this unit ensures stable results for R&D, quality assurance, and industrial maintenance. Contact us today for personalized technical support and bulk inquiries.
