Description

KEYSIGHT – E36441A

– E36441A, Power Supply, 4 Channels, 400 W

Autoranging bench power supply – Power Your Next Insight

400 W four-channel DC power supply, engineered for precision and reliability.
This solution delivers 400 W across four outputs, each providing 160 W at 32 V / 10 A. Enjoy precise control with accurate programming and readback. Experience stable performance, low ripple and noise, and a fast transient response. It supports both two-wire and four-wire remote sensing for accurate voltage delivery. The user-friendly interface features a seven-inch color display, front and rear terminals, colorcoded channels, and individual adjustment knobs.
Connectivity is seamless with Local Area Network (LAN) and Universal Serial Bus (USB) interfaces, and an emulator option ensures easy migration from the computer program with third-party power supplies.

Features:
Clean and reliable power
– Four outputs ” 160 W / 32 V / 10 A per channel, a total of 400 W
– Auto Series to 128 V; Parallel to 40 A with the optional Series and Parallel Kit
– Low output ripple and noise
– Accurate programming/readback capability
– Fast transient response, command processing, and up / down program speed
– two-wire or four-wire remote sense
– Over-voltage, over-current, and over-temperature protection

Intuitive and easy-to-use interface

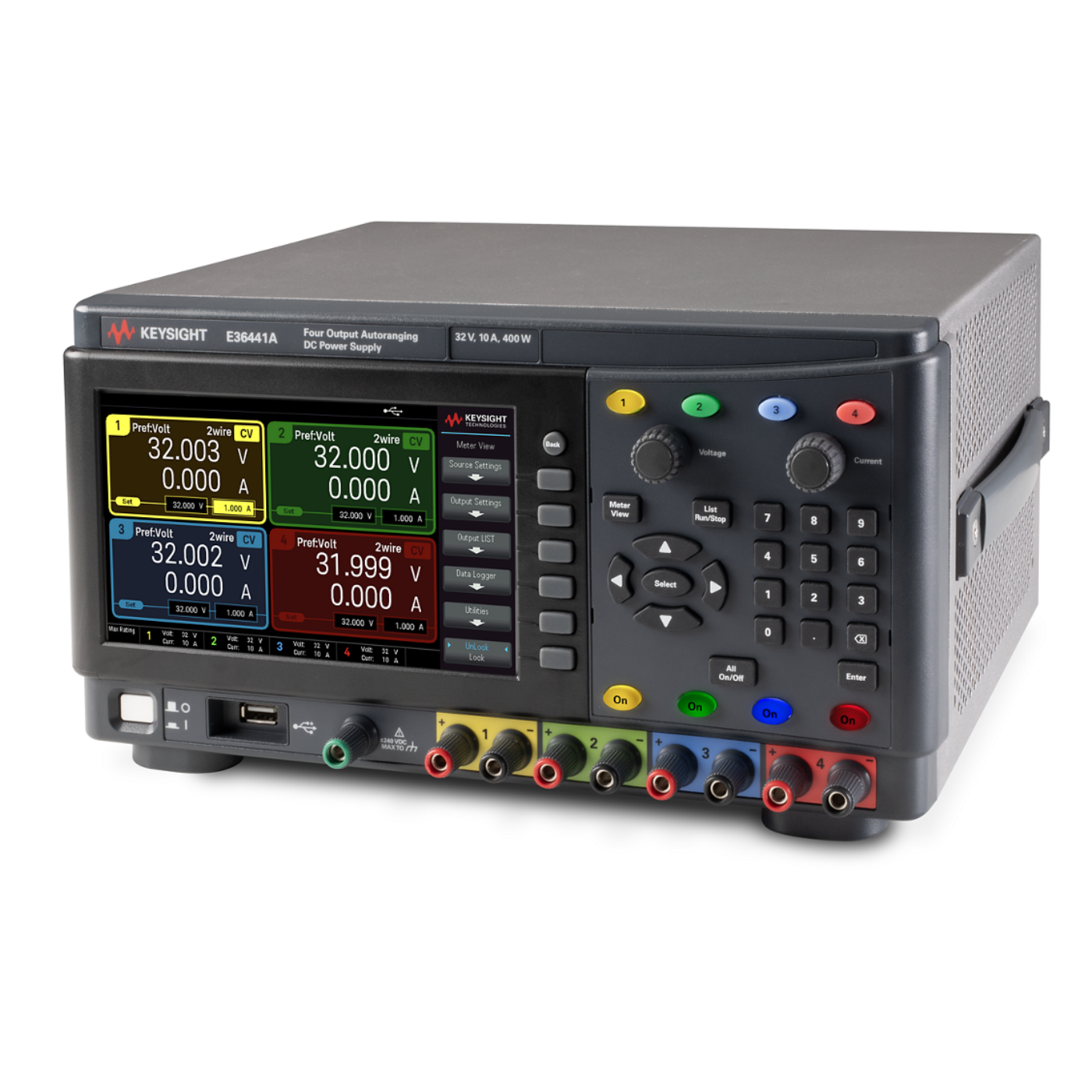

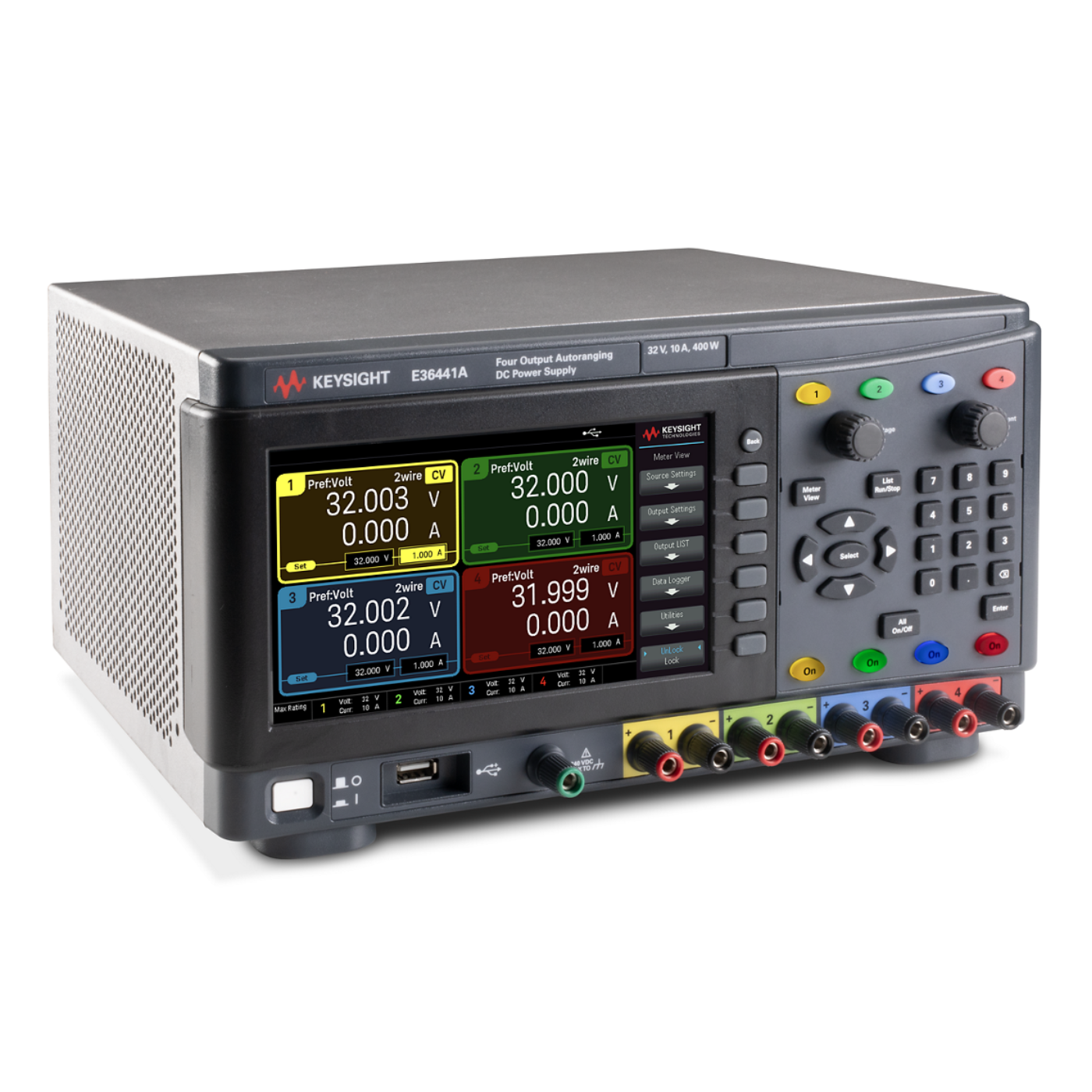

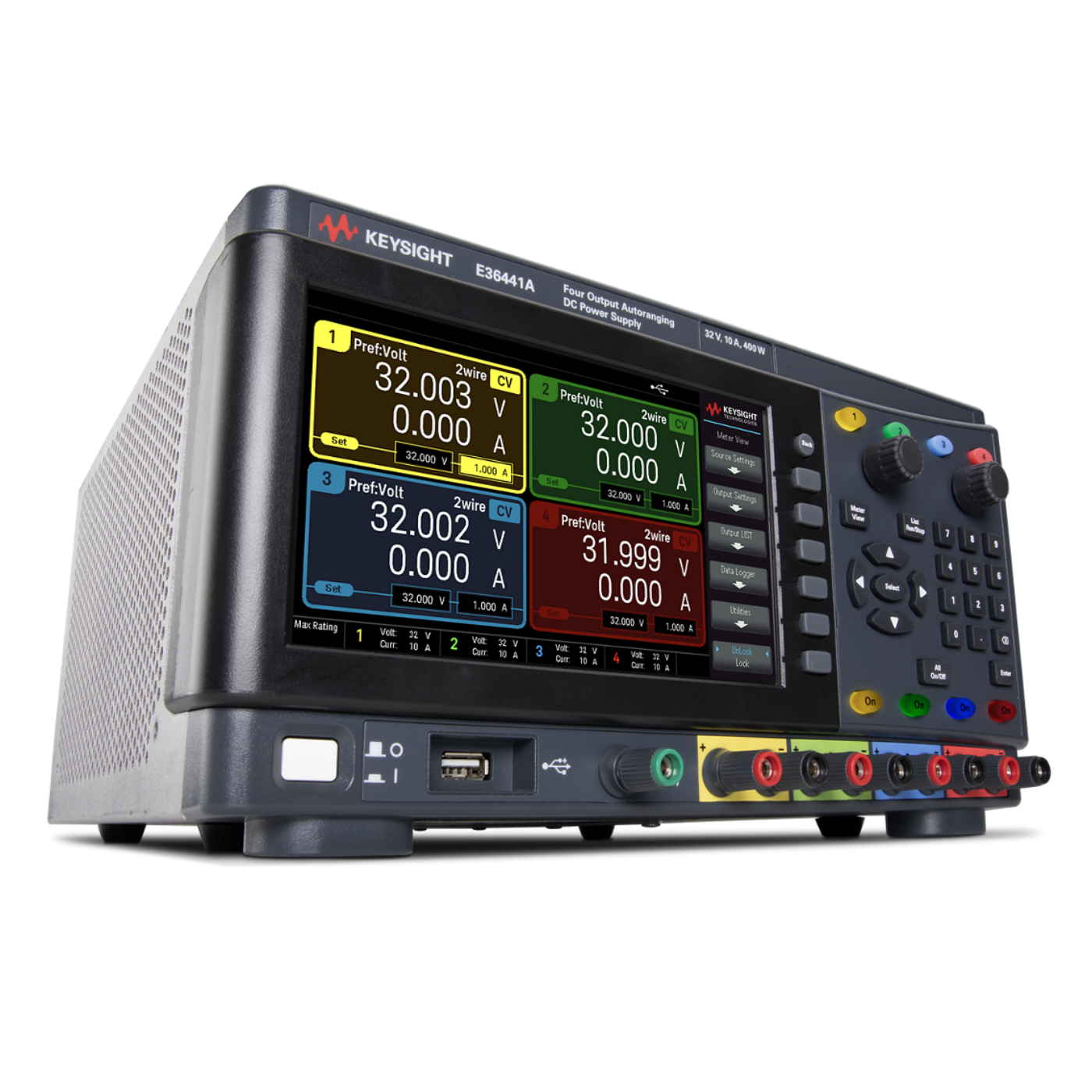

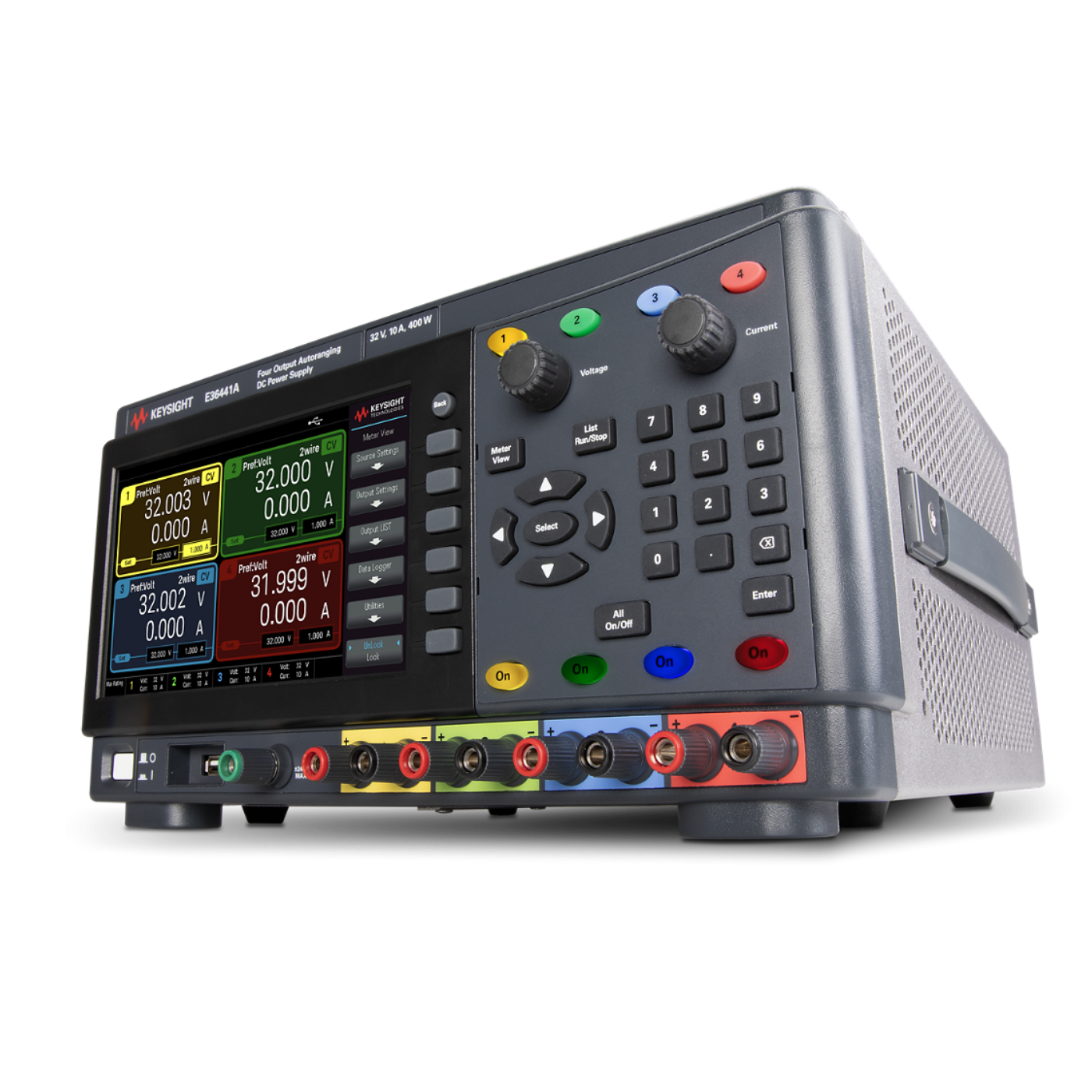

– Seven-inch Liquid Crystal Display (LCD) color display
– Numerical keypad for precise output setting
– Color-coded channels
– Individual knobs for voltage and current

More productivity features
– Built-in data logger, output sequencing, LIST mode, output tracking, and adjustable voltage slew rate

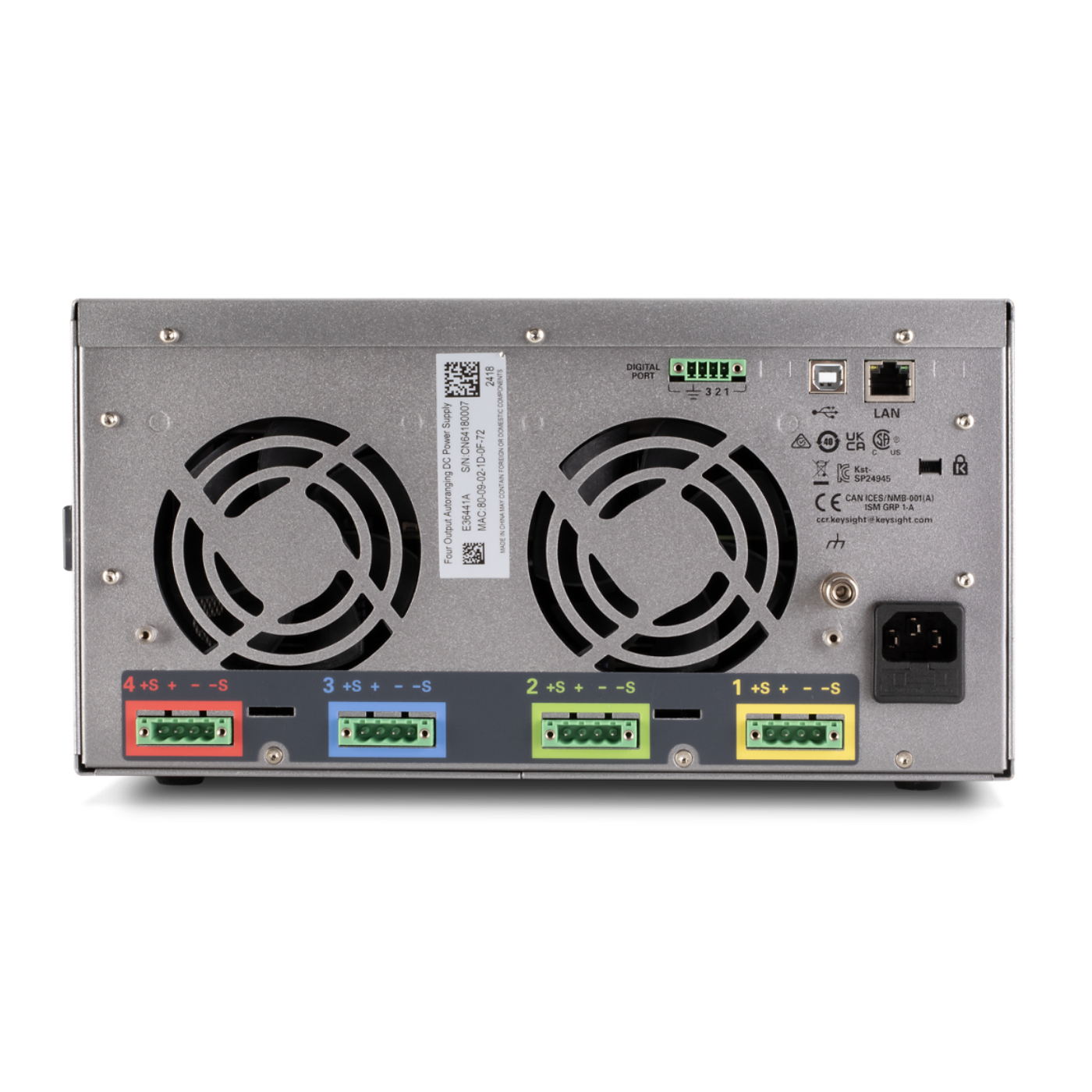

– Front and rear output terminals
– LAN and USB connectivity
– PathWave BenchVue power supply application software

Why Choose the E36441A?

The E36441A is built to deliver unmatched reliability and accuracy in the most demanding environments. Designed for engineers who prioritize performance, this unit ensures stable results for R&D, quality assurance, and industrial maintenance. Contact us today for personalized technical support and bulk inquiries.
