Description

GW INSTEK – GOM-804

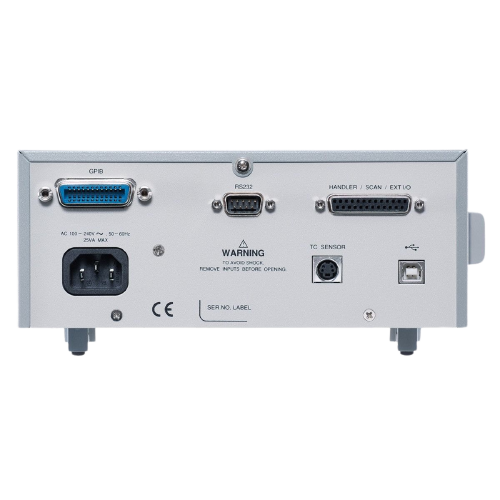

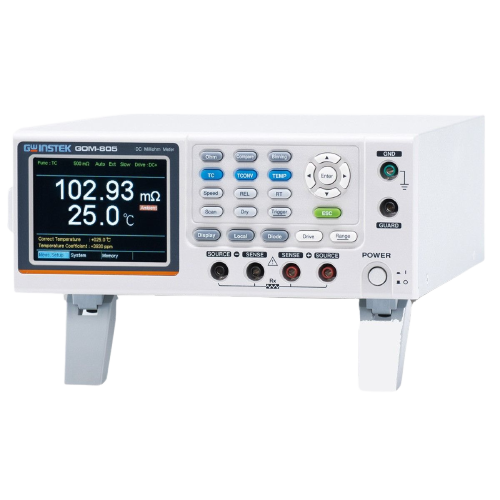

– Programmable DC Milli-Ohm Meter 50’000 counts The GOM-805 features 3.5-inch TFT display, maximum 50,000 counts measurement display, the rapid sampling rate of 60 readings per second, optimum 0.05% measurement precision, four wire measurement method as well as the temperature measurement and temperature compensation measurement function to meet the requirement of low resistance measurement application. The GOM-805 also includes various drive modes and Dry circuit for contact resistance measurement applications. More features, including 20 sets of panel setting memory and many external control interface such as RS-232C, USB, Handler/Scan/EXT IO or GPIB greatly elevate GOM-805 milliohm meters convenience on practical applications. Key features: – 50’000 counts – 3.5 (320 x 240) TFT LCD display – High accuracy of 0.05 % precision – 1 Amp test current, 0.1 µ⦠resolution – Fast measurement of 60 readings per second – Four wire resistance measurement – Temperature compensation measurement function – Delayed measurement 20 sets of panel setting memory – Dry circuit – Drive modes: DC+/DC-, Pulsed, PWM, Zero, Standby – Interface: USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB

Why Choose the GOM-804?

This device is engineered to meet the highest standards of accuracy and reliability in demanding environments. Whether for research and development, quality control, or production testing, it provides the consistent performance professionals depend on. For technical consultations and further details, please contact our expert team today.
