GW INSTEK – GSP-8180TG

1.8GHz Spectrum Analyzer with Tracking Generator

The GSP-8000 series, brand new general spectrum analyzers from GW Instek, features three frequency ranges, namely 8.0GHz, 3.8GHz and 1.8GHz. The series is suitable for teaching research, R&D verification, and the test requirements of radio frequency products during production and development stages. The series provides 1Hz ~ 1MHz resolution bandwidth (RBW), 10Hz ~ 3MHz video bandwidth (VBW), -104dBc/Hz phase noise, a 20dB preamplifier, and the lowest noise floor of -160dBm/Hz (typical).

With respect to measurement applications, GSP-8000 has built-in Time Spec function, AM/FM signal demodulation function, channel test (Channel Power Measurement) function, Pass-Fail function, etc. The Time Spec function can simultaneously observe and display the correlation between power, frequency and time. ACPR/OCBW/CHPW tests can be used to test adjacent channels, power occupation bandwidth ratio, and channel power. The Pass-Fail function can be used to determine whether the signal is within the set range. Users can use these functions to conduct a wide range of measurement applications.

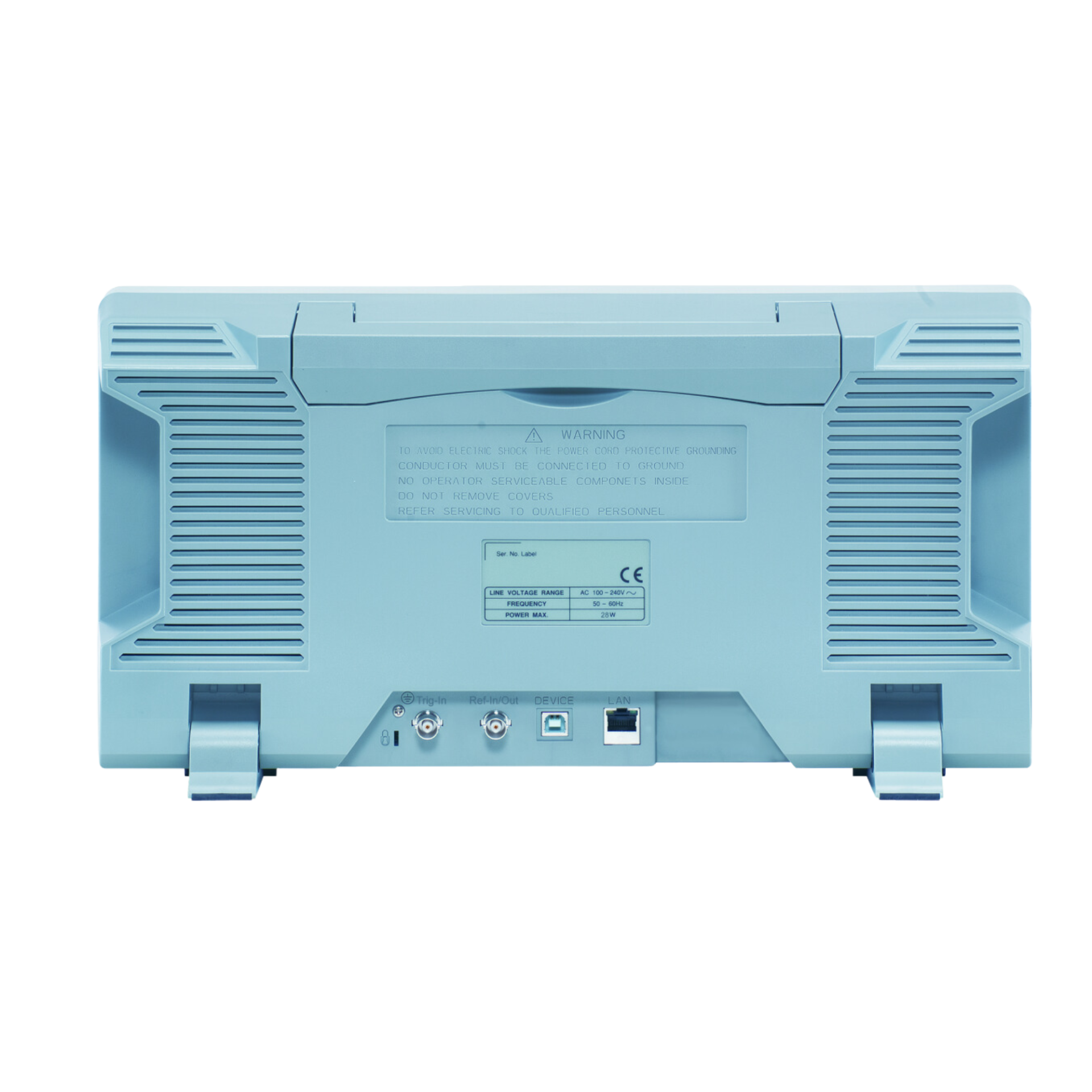

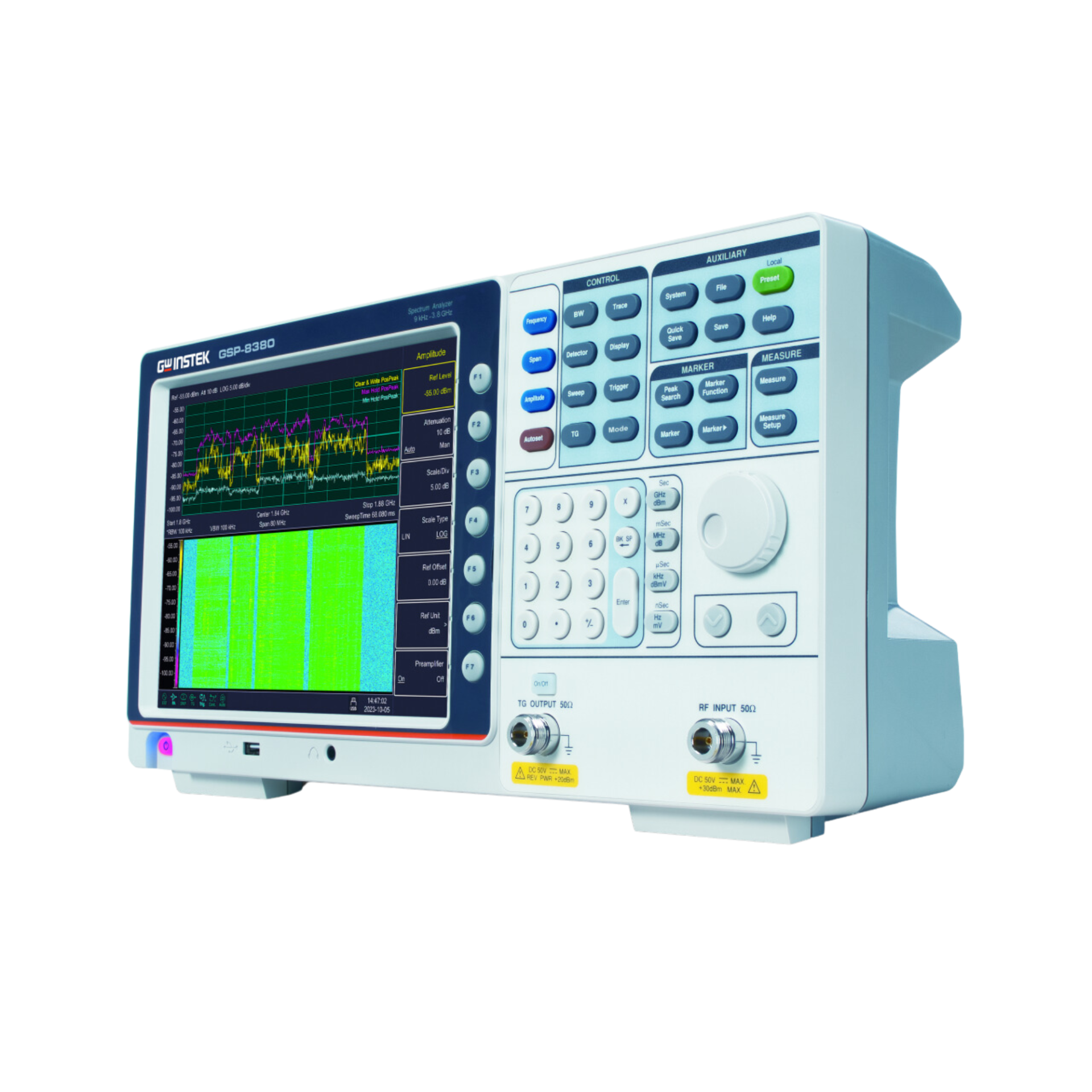

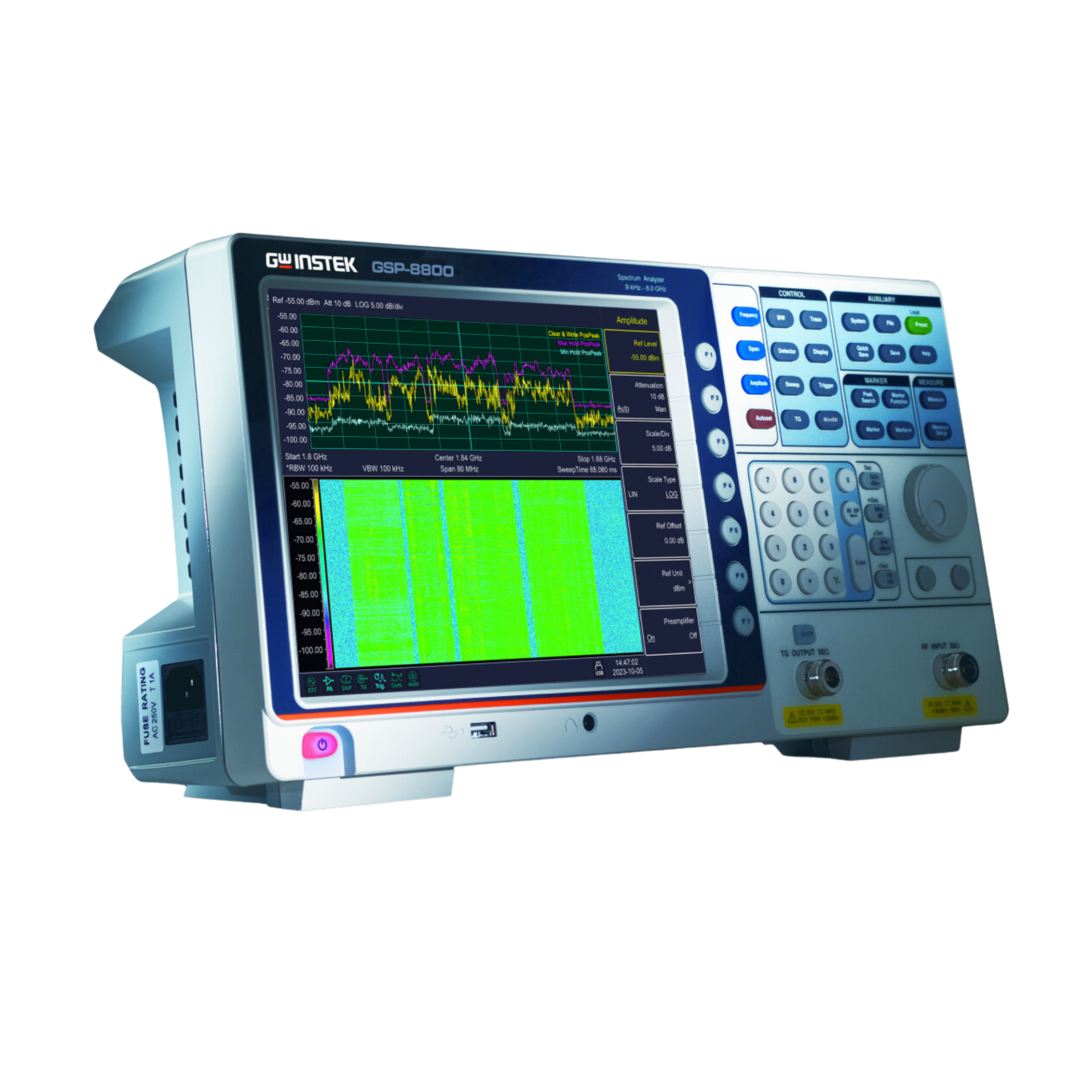

GSP-8000 utilizes a 10.4-inch TFT LCD large-size screen with XGA (1024*768) resolution to allow an easy observation of test signals. For communication interface, GSP-8000 provides two interfaces: USB and LAN. Through the USB Host, users can quickly retrieve the files stored after measurements, while USB Device and LAN interface allow users to control the instrument through dedicated PC software, or use the corresponding command set to design the required program.

– GSP-8000 also provides two options, namely TG and EMI Filter. For GSP-8800 customers need to decide the TG function when placing an order. Other options can be activated through the corresponding software authorization (Soft-Key), which greatly improves usage efficiency.

Features:
 Frequency Range: 9kHz ~ 3.8GHz
 RBW: 1Hz ~ 1MHz in 1-3-5-10 steps
 VBW: 10Hz ~ 3MHz in 1-3-5-10 steps Phase Noise: -104 dBc/Hz Sensitivity: -160dBm/Hz Typical PreAmp On Built-in AM/FM Demodulation Built-in Time Spec Function Measurement Function: ACPR/OCBW/CHPW, NdB BW, Pass-Fail, Freq. Counter, Noise Marker Built-in 20dB Preamplifier Communication Interface: LAN, USB Host/Device Display: 10.4″ XGA Output (1024*768) Options: Tracking Generator for GSP-8800, EMI Filter

Why Choose the GSP-8180TG?

This device is engineered to meet the highest standards of accuracy and reliability in demanding environments. Whether for research and development, quality control, or production testing, it provides the consistent performance professionals depend on. For technical consultations and further details, please contact our expert team today.
