The Pico Technology PicoVNA 106 is a USB-controlled 2-port vector network analyzer covering 300 kHz to 6 GHz with full bidirectional S-parameters (S11, S21, S12, S22) and up to 118 dB dynamic range.
Key Specifications
Frequency range: 300 kHz to 6 GHz
Dynamic range: up to 118 dB (10 Hz IFBW)
Sweep points: 51 to 10,001 (TDR mode 512 to 4096)
Trace noise: 0.005 dB rms typ. at 140 kHz IFBW
Measurement speed: approx. 20 ms for 201 points (S11/S21 cal, 140 kHz)
Test ports: Type N female, 4 receivers, switched source
Measurement Features
Full 12-term S-parameter calibration, 8-term unknown-thru, 1-port and normalisation
Time-domain analysis (TDR/TDT) with Hanning and Kaiser-Bessel filtering
PicoVNA 5 software (Windows, macOS, Linux, Raspberry Pi), DLL / API for automation
Connectivity & Options

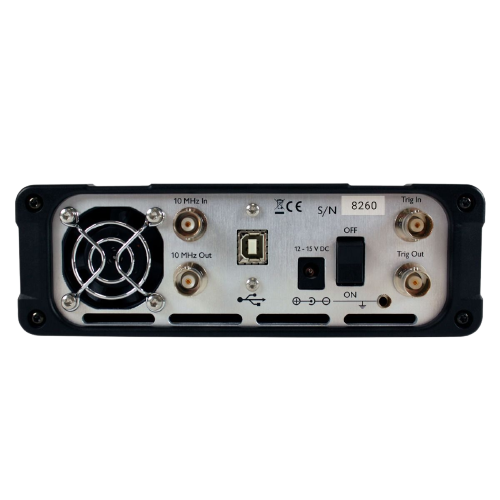

USB 2.0, external 12-15 V DC supply

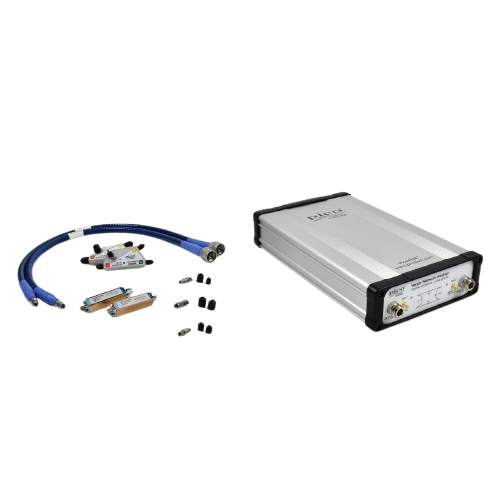

SOLT, E-Cal and TRL/TRM calibration kits available separately
PicoVNA 106
CHF 6'296.00
excl. VAT
Description
Pico Technology PicoVNA 106 6 GHz 2-Port Vector Network Analyzer
The Pico Technology PicoVNA 106 is a USB-controlled 2-port vector network analyzer covering 300 kHz to 6 GHz with full bidirectional S-parameters (S11, S21, S12, S22) and up to 118 dB dynamic range.
Key Specifications
Measurement Features
Connectivity & Options
Additional information
USB-controlled 2-port Vector Network Analyzer
VNA
300 kHz – 6 GHz
2-Port
Up to 118 dB
Up to 10001 points
USB 2.0
PicoVNA 5
Full bidirectional, S11, S12, S21, S22
Full S-parameter and time-domain analysis
