RSA5032N

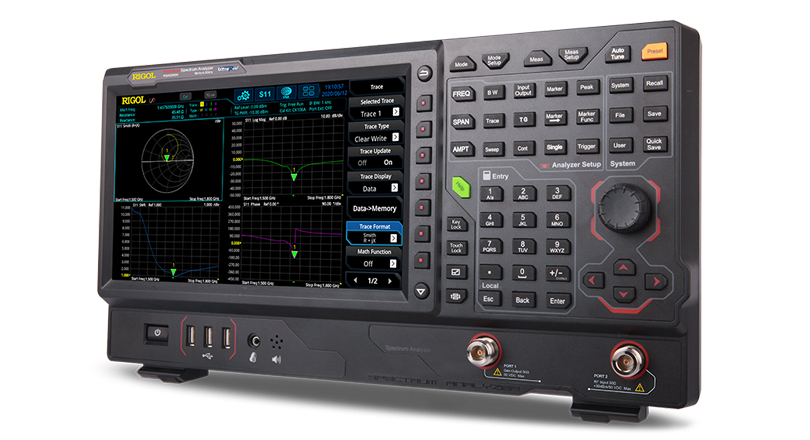

RIGOL RSA5032N 3.2 GHz Real-Time Spectrum Analyzer with Tracking Generator & VNA

The RIGOL RSA5032N is a RSA5000N series real-time spectrum analyzer covering 9 kHz to 3.2 GHz, with a built-in tracking generator and VNA mode (S11, S21, distance-to-fault) as standard.

Key Specifications

• Frequency range: 9 kHz to 3.2 GHz
• DANL: < -145 dBm typ. (preamp off), < -165 dBm typ. (with RSA5000-PA preamp)
• Phase noise: < -108 dBc/Hz typ. @ 10 kHz offset
• RBW: 1 Hz to 10 MHz
• Real-time bandwidth: 25 MHz standard, 40 MHz optional
• Min. sweep time: 1 ms (span 10 Hz), 1 µs zero span
• Tracking generator: 100 kHz to 3.2 GHz, -40 to 0 dBm
• Display: 10.1-inch capacitive multi-touch, 1024 × 600

Measurement Modes

• VNA mode (standard): S11, S21, distance-to-fault, 10 MHz to 3.2 GHz, 101 to 10,001 points
• GPSA and RTSA standard; VSA (RSA5000-VSA) and EMI (RSA5000-EMI) optional
• Calibration kits CK106A / CK106E optional

Connectivity

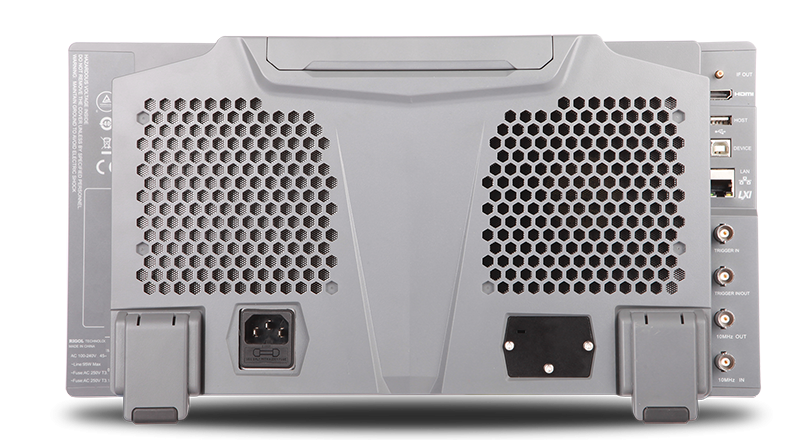

• USB 2.0 Host (4x), USB Device, LAN (LXI Core 2011), HDMI 1.4b, 10 MHz Ref, Ext Trigger, IF out
