GWINSTEK – GPM-8320-60 GPIB/DA12

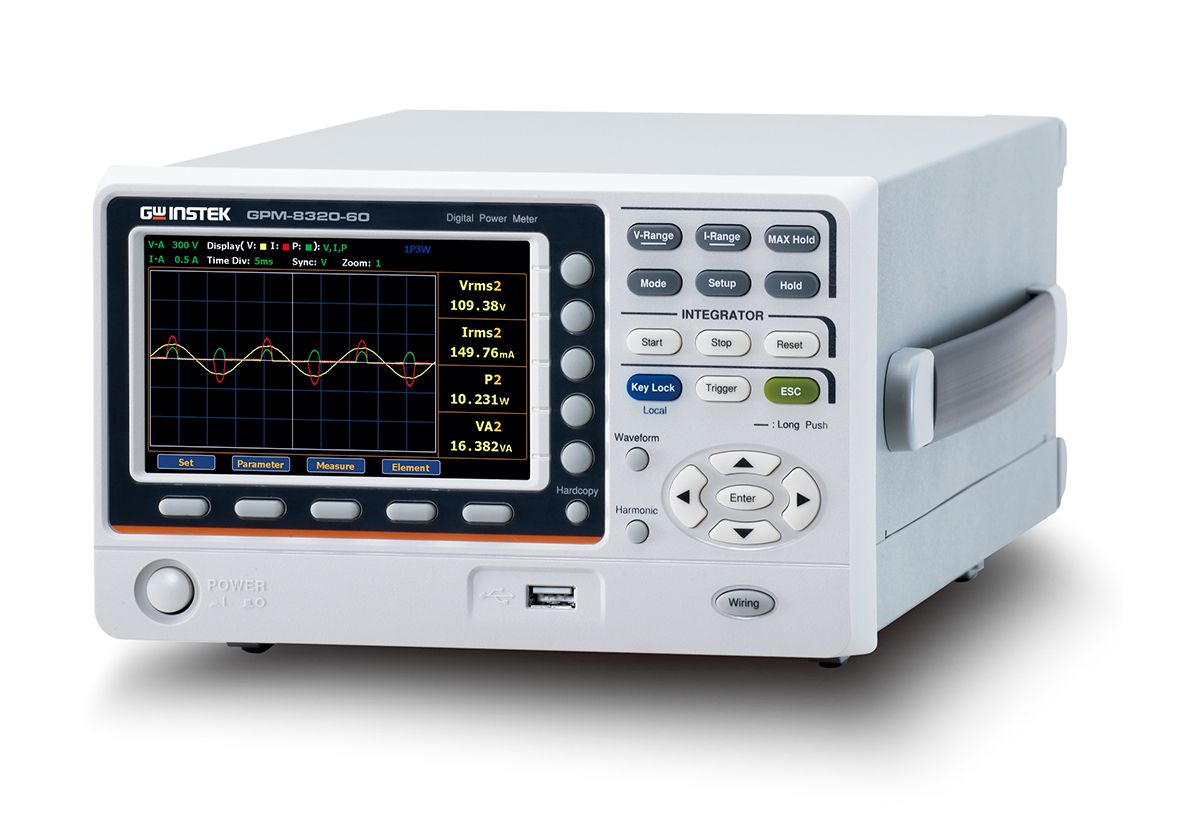

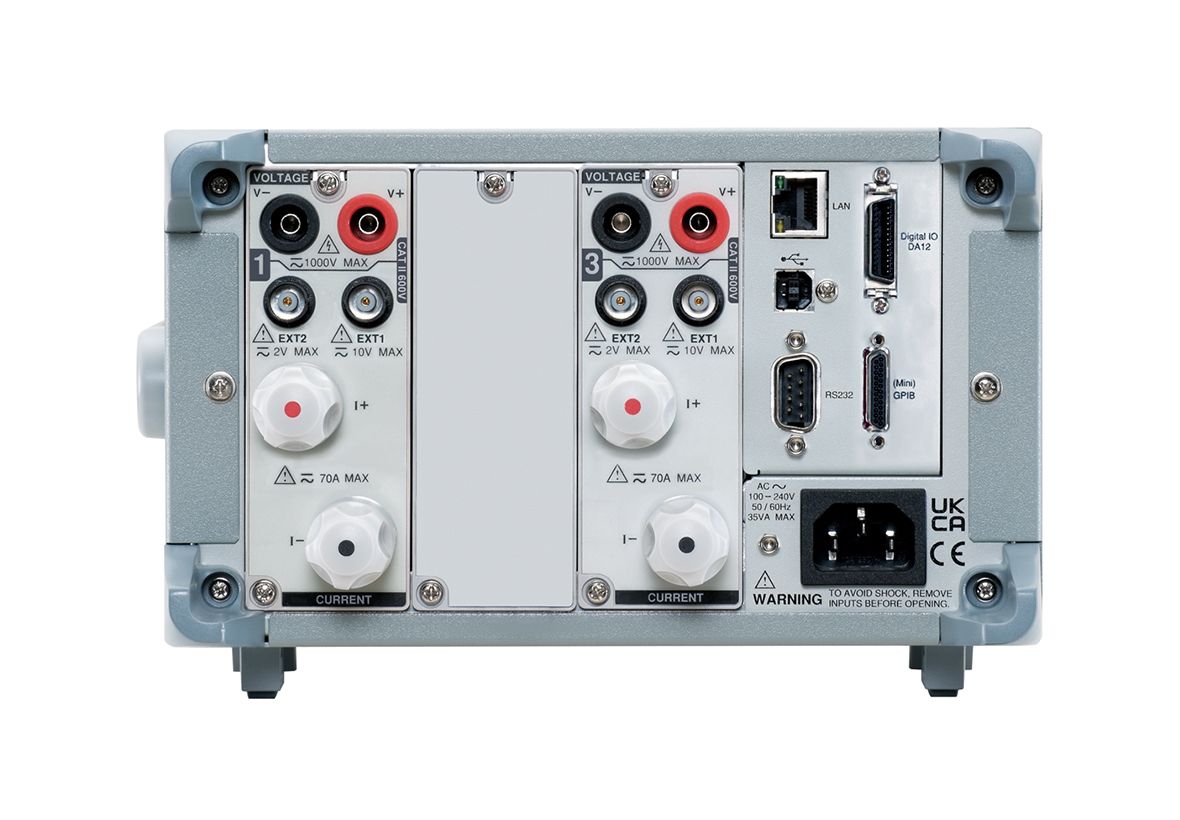

GW Instek GPM-8320-60 GPIB/DA12 is a Digital Power Meter (RS-232C / USB device & host / LAN and opt. GPIB+DA12)

GW Instek GPM-8320-60/GPM-8330-60 are extension models of the existing three-phase power meter GPM-8320/GPM-8330. The GPM-8320-60 provides 2 input elements, and the GPM-8330-60 provides 3 input elements and the added “-60” symbol means the maximum current of the direct input can reach 70 A (60 A is guaranteed specification) , which not only enhance the high-current power measurement applications, but also save the cost of current transformer compared to the existing models.

These models have a testing bandwidth of DC, 0.1 Hz to 100 kHz and feature 16-bit A/D converters and a sampling rate of 300 kHz. A 5-inch TFT LCD display, 5 digits of measurement readings, 25 different power measurement parameters, and high precision measurement capabilities are also provided.

GPM-8320-60/GPM-8330-60 also feature waveform display capabilities (voltage/current/power), the integration measurement function, harmonics measurement and analysis of multiple orders (50 Hz / 60 Hz measurement complies with IEC61000-4-7 requirements), external sensor input terminals, and a variety of communications interfaces. These features help users achieve clear, convenient, and accurate power measurements, making them the most fully-featured and cost-effective power meters in the same category.

Features
– 5 TFT LCD
– Voltage/Current Test Freq. Bandwidth: DC, 0.1 Hz to 100 kHz
– Direct input current up to 60 A
– Waveform Display : V (Voltage), I (Current), P (Wattage)
– Distorted wave Current/Voltage measurement: full range for CF=3, and half range for CF=6 (or 6A)
– Meeting IEC 61000-4-7 harmonic measurement (50 Hz / 60 Hz)
– Wiring selecting button (1P3W,3P3W,3P4W,3V3A)
– Harmonic measurement & analysis up to 50 orders
– Auto ranging function for Integration mode
– Screen Capture through USB host
– Provide external current sensor input (EXT1/EXT2)

Why Choose the GPM-8320-60 (CE) GPIB/DA12?

This device is engineered to meet the highest standards of accuracy and reliability in demanding environments. Whether for research and development, quality control, or production testing, it provides the consistent performance professionals depend on. For technical consultations and further details, please contact our expert team today.
